330880-00-00-00-03-02 Vibration Monitor

330880-00-00-00-03-02 Vibration Monitor (Bently Nevada)
Product Overview

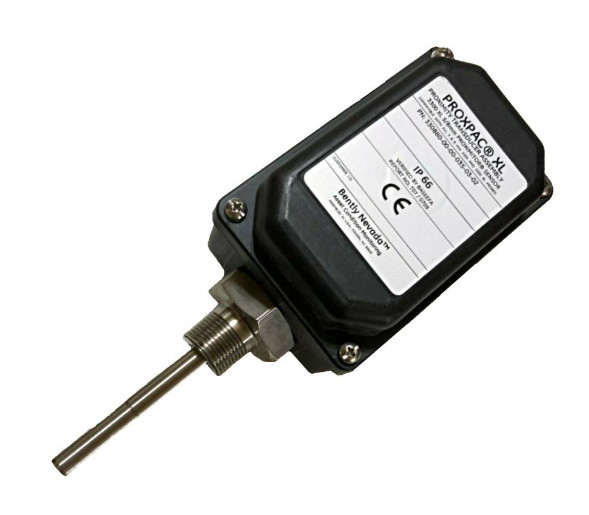

330880-00-00-00-03-02 is a PROXPAC XL 330880 series eddy current sensor produced by Bently Nevada Corporation in the United States. It is a vibration monitoring probe/sensor mainly used for vibration and displacement monitoring of rotating machinery.

Model Interpretation
Meaning of Segment Code
Series 330880 PROXPAC XL eddy current sensor assembly (similar to 31000/32000 probe housing design)
Paragraph 1: Probe housing/shell configuration (00 represents special/simplified configuration)
Section 2: 00 Installation Method
Section 3: 00 Extension Cable Length (00 usually indicates no extension cable or a specific length)
Section 4 03 Connector Type
Section 5 02 Probe Tip/Measurement Range Configuration
📌 This model is a simplified/customized configuration version compared to the common 330880-16-15-065-01-02 (with standard housing and 15ft extension cable).

Core technical parameters
Parameter specifications
Sensor type Eddy Current Proximity Probe
Sensitivity 7.87 mV/μ m (200 mV/mil) ± 6.5%
Measurement range 0~10 kHz
Output type voltage signal
Compliant with standard API 670 (American Petroleum Institute)
Installation method: Threaded installation (M12 connector)
Protection level IP65/IP67 (depending on specific configuration)
Working temperature 25 ℃ (typical value, can be extended to -40 ℃~+85 ℃ depending on the model)
application field
This probe is widely used for vibration and axial displacement monitoring in the following scenarios:

Typical equipment in the industry
🏭 Electric turbines, generators, and large motors
🛢️ Petrochemical compressors, blowers, pumps
🔩 Metallurgical gearbox, air compressor, cooling pump
⚡ Chemical centrifugal compressor, small water pump, fan
System Composition
The 330880 series probe needs to be paired with the following equipment to form a complete monitoring system:

330880 probe → extension cable (such as 330930 series) → preamplifier (such as 330980-51-00/CN)
↓
Vibration transmitter (such as 990-04-50-01-00/CN)
↓
→ 4-20mA output → DCS/PLC
It can also be directly connected to the 1900/65A vibration monitor (multi-channel, supporting Modbus/Ethernet communication).
