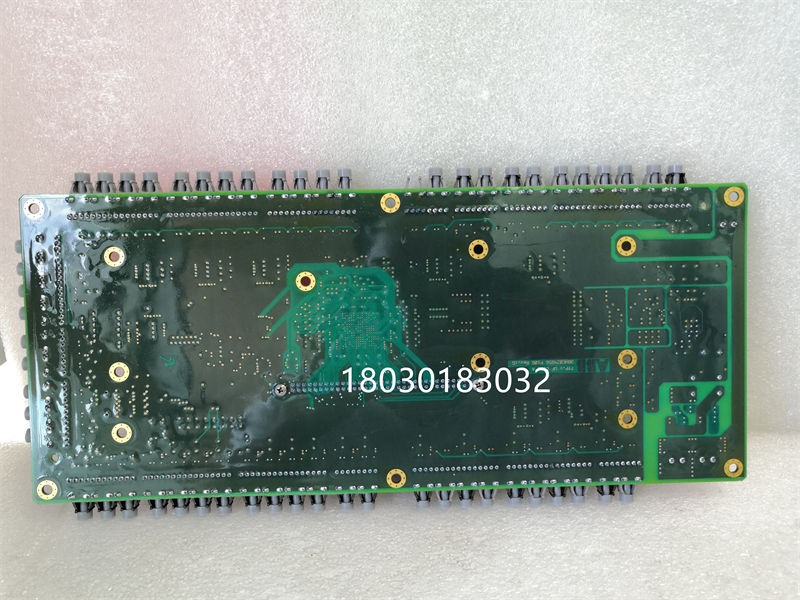

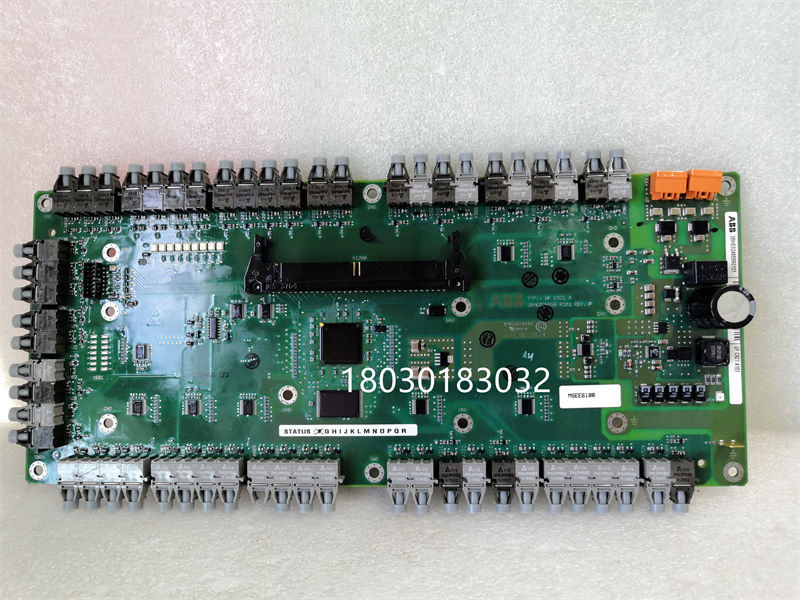

3BHE048062R0102 UFC933A102 Control Module

3BHE048062R0102 UFC933A102 Control Module
Product Overview
UFC933A102 (3BHE048062R0102) is a medium voltage drive control module produced by ABB in Sweden. It is the core control component of ABB ACS8000 series medium voltage drive systems and is responsible for executing motor control algorithms, power unit coordination, and system level communication management.

📌 This module is used in conjunction with UFC933A101 (3BHE048062R0101, rectifier control board) to form a complete medium voltage frequency converter control link. In some literature, it is also classified as rectifier control board/inverter control board.

Model Interpretation
Meaning of field codes
UFC – Unified Field Controller
933-ACS8000 series medium voltage frequency converter control module class
A – Version/Hardware Revision Level
102- Sub model (Control Algorithm/I/O Configuration Version)
3BHE048062R0102- ABB Official Order Number
Core technical parameters
Parameter specifications
brand ABB
ABB ACS8000 series medium voltage variable frequency drive system
Module type: Digital control module (rectifier/inverter control)
Control object medium voltage frequency converter power unit (6-pulse/12 pulse/18 pulse/24 pulse rectification)
Processor 32-bit DSP+FPGA (dual core redundant architecture)
Control Algorithm Vector Control (FOC), V/F Control, Direct Torque Control (DTC)
Modulation method: Multi level PWM (suitable for cascaded H-bridge topology)
Synchronous signal with built-in PLL phase-locked loop and external synchronous input
Communication interfaces Modbus RTU/TCP, Profibus DP, DeviceNet, Ethernet (TCP/IP)
The fieldbus is extended through interface modules such as UFC911/UFC921
I/O channel digital I/O+analog I/O (specific quantity depends on configuration)
Given signal 0~10VDC/4~20mA/0~5VDC (optional)
Feedback signal current transformer (CT)+voltage transformer (PT) input
Working voltage 24VDC (control power supply)
Working temperature -10 ° C~+55 ° C (installed inside the cabinet)
Protection level IP20 (installed inside the cabinet)
Installation method: DIN rail/chassis slot installation
Production Status ⚠️ Stopped production, the market is dominated by inventory/disassembled parts
Core advantages include high-precision vector control, multi pulse rectification, redundant fault tolerance, and extensive communication protocol support
System architecture and working principle
┌──────────────────────────────────────────────────────────┐
│ ABB ACS8000 medium voltage variable frequency drive system │
│ │
│————————————————————————————
││ Upper system │◄══════════════► UFC933A102 ││
││ (DCS/PLC) │ Modbus/Profibus │ Control module ││
│└————— ┘│· Vector Control Algorithm ││
││· PWM modulation ││
││· Power Unit Coordination ││
│ └───────┬──────────┘ │
││ Trigger pulse │
│ ▼ │
│ ┌─────────────────┐ ┌──────────────────┐ │
││ Power Unit ││ Medium Voltage Motor/Transformer ││
││ (cascaded H-bridge) │◄ -6/12/18/24 pulse rectification – ►│ (controlled equipment) ││
│ └─────────────────┘ └──────────────────┘ │
└──────────────────────────────────────────────────────────┘
working principle
Stage description
Signal acquisition receives current and voltage feedback signals from CT/PT+encoder speed feedback
Given the speed/torque given signal (4~20mA/Modbus) received from the upper system (DCS/PLC)
Control algorithm DSP executes vector control (FOC) algorithm to calculate the required voltage vector
PWM modulation FPGA generates multi-level PWM trigger pulses to drive power unit IGBT
Power coordination coordinates the output of multiple power units to achieve multi pulse rectification and reduce harmonics
Safety interlock overcurrent/overvoltage/undervoltage/short circuit protection, automatically blocks triggering pulse in case of fault
Communication management communicates in real-time with the upper system through Modbus/Profibus/Ethernet
core advantage
Advantages Explanation
🎯 High precision control vector control (FOC), speed accuracy ± 0.01%, torque response<10ms
⚡ Multi pulse rectification supports 6/12/18/24 pulses, THDi <5%， Meets IEEE 519 harmonic standard
🛡️ Functional safety complies with IEC 61508 SIL 2/EN 62061 Cat.3
🔄 Redundant design with dual processor hot standby and fiber optic communication redundancy, ensuring uninterrupted operation even in the event of a single point of failure
🌐 Rich communication: Modbus RTU/TCP+Profibus DP+DeviceNet+Ethernet
📊 SOE records 1ms precision event sequence with timestamp
🌡️ Wide temperature operation -10 ° C~+55 ° C, suitable for harsh industrial environments
🔌 hot-swapping ✅ Support online replacement without system shutdown
Typical application scenarios
Industry Applications
⚡ Medium voltage variable frequency speed regulation and plant power switching for large power fans/pumps/compressors
🛢️ Medium voltage variable frequency drive and ESD emergency shutdown for large petrochemical pump sets/compressors
🏭 Metallurgical rolling mill main drive, blast furnace fan, mine hoist medium voltage frequency conversion
💧 Medium voltage variable frequency speed regulation for pumping stations in large-scale water treatment plants
🏗️ Medium voltage variable frequency drive for large central air conditioning refrigeration units in buildings
🚢 Medium voltage variable frequency drive for ship propulsion system
Constant pairing module (ACS8000 ecosystem)
Module model, order number, type, function
UFC933A101 3BHE048062R0101 rectifier control board ⭐ This product is paired with a module (rectifier side)
UFC933A102 3BHE048062R0102 Inverter Control Board ⭐ This product (inverter side)
UFC911B101 3BHE037864R0101 thyristor trigger controller used in conjunction with
UFC921AE101 3BHE024856P106 Safety Controller CPU Safety Interlock
UFC721BE101 3BHE021889R0101 Safety Controller CPU SIL 3 Safety Control
UBC717BE101 3BHE021887R0101 thyristor trigger controller trigger control (matched with UFC933A)
PPC907CE101 3BHE048062R0102 power control module is used in conjunction with
PPD517A3011 3BHE041576R3011 Digital Input Module I/O Expansion
PCD530A102 3BHE041343R0102 Analog Input Module I/O Expansion
GFD563A102 3BHE046836R0102 Excitation Controller Generator Excitation Control
