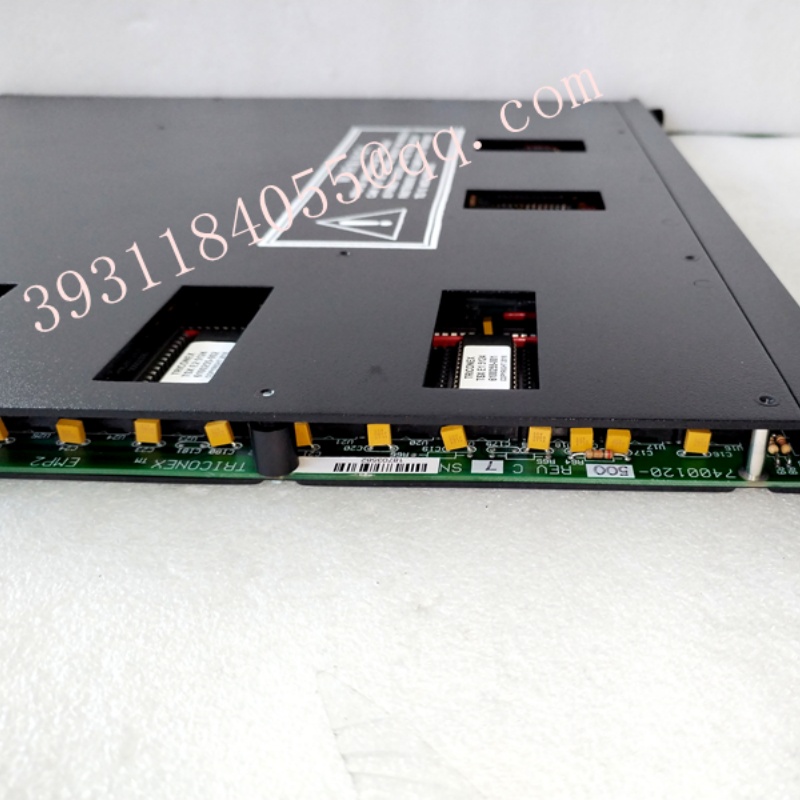

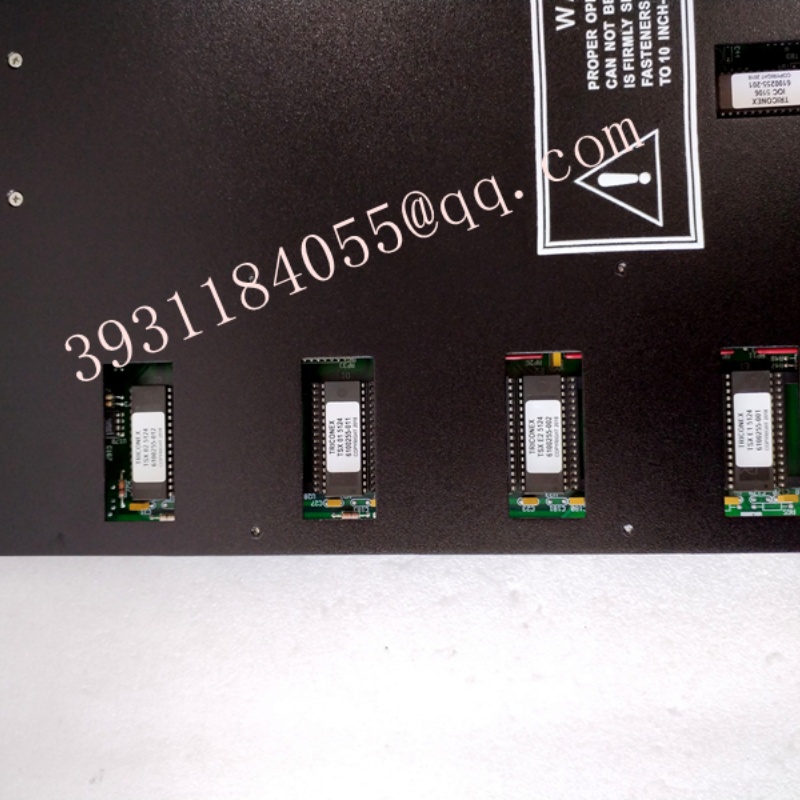

4409 Triconex Security Management Module

Triconex 4409 is the Safety Manager Module (SMM) in the Triconex Safety Instrumented System (SIS) of Invensys (now under Schneider Electric).
It is one of the core components in the Triconex V9 and subsequent version control systems, mainly used to perform security logic operations, manage system communication, and coordinate the work of other modules.
The following is detailed information about the module:
1. Main functions
Security logic execution: As the main processor or co processor of the system, responsible for running user written control logic (such as emergency shutdown system ESD, fire and gas system F&G logic).
System management: Monitor the status of other modules (such as input/output modules, communication modules) within the entire rack, diagnose faults, and ensure the proper functioning of the Triple Modular Redundancy (TMR) architecture of the system.
Communication interface: Provides communication interfaces with upper computers (such as engineer workstations, operator stations) and other external systems (such as DCS, PLC). It usually supports protocols such as Modbus and TCP/IP.
Fault tolerance: Relying on Triconex’s TMR architecture, the system can maintain safe operation and correct output even in the event of one or two channel failures.
2. Technical features
Model identification: usually marked as 4409 or SMM 4409.
Compatibility: Mainly used for the Triconex V9 system architecture, and in some cases compatible with subsequent upgraded systems, but specific firmware versions and backplane compatibility need to be confirmed.
Indicator light status: There are usually multiple LED indicator lights (such as Run, Fault, Comm, I/O Status, etc.) on the module panel, which are used to display the real-time running status, fault information, and communication activity of the module.
Safety level: Designed to meet the requirements of SIL 3 (IEC 61508/61511) safety integrity level.
3. Application scenarios
Widely used in industrial fields with extremely high requirements for safety and reliability, including:
Oil and gas (refining, pipeline transportation)
chemical industry
Power industry (turbine control)
pharmaceutical industry
Nuclear energy facilities
4. Maintenance and replacement precautions
Hot plugging: In most properly configured Triconex systems, the 4409 module supports online hot plugging (i.e. replacing faulty modules during system operation), but safety regulations and official manuals must be strictly followed before operation to confirm that the system redundancy status is normal.
Firmware matching: When replacing a module, the firmware version of the new module usually needs to be consistent with the existing version of the system, or automatically downloaded/synchronized by the main processor after insertion (depending on the specific system configuration).
Configuration backup: Before any hardware replacement or maintenance, it is essential to perform a complete backup of the current system logic configuration.
5. Market situation
Due to this model being a classic industrial control spare part, there are currently both brand new original products and refurbished second-hand spare parts on the market. When purchasing, it is recommended to confirm the supplier’s qualifications as well as the production date and firmware version of the module to ensure compatibility with the existing system.
