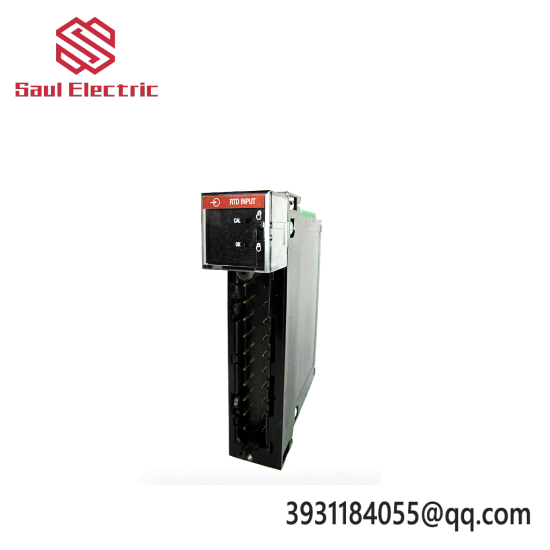

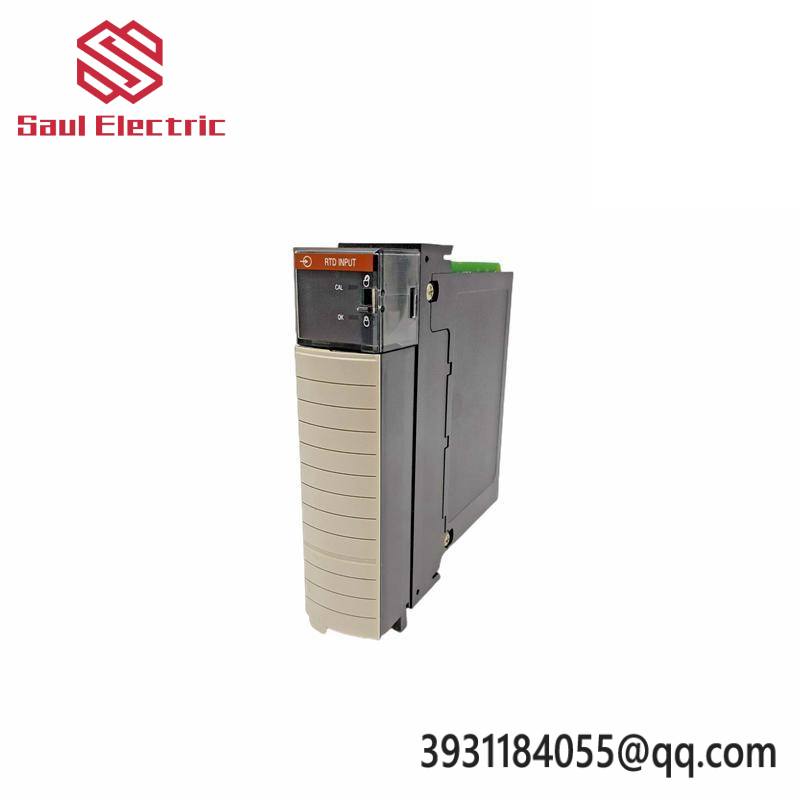

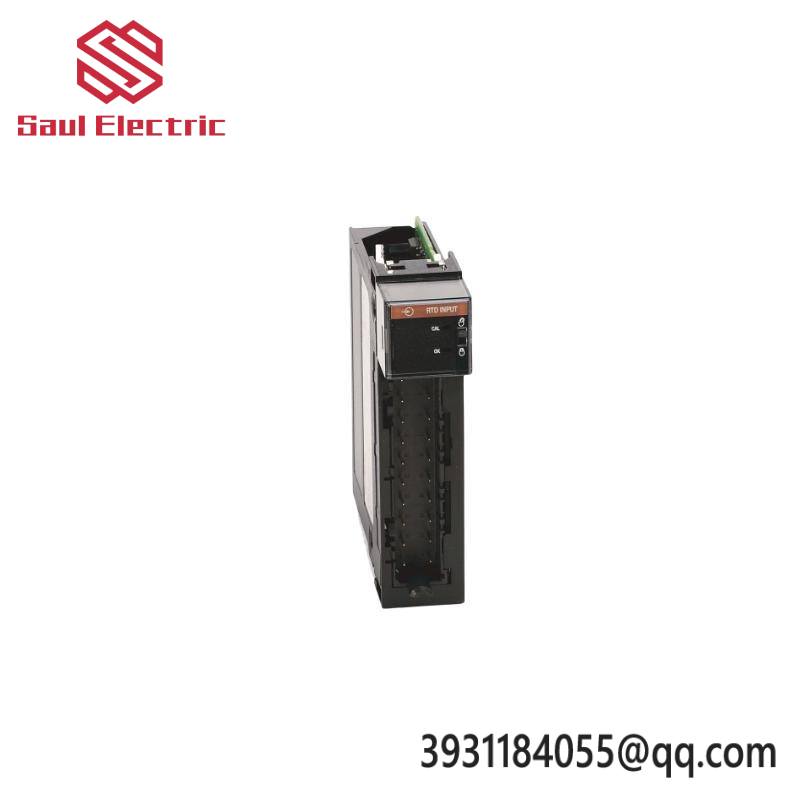

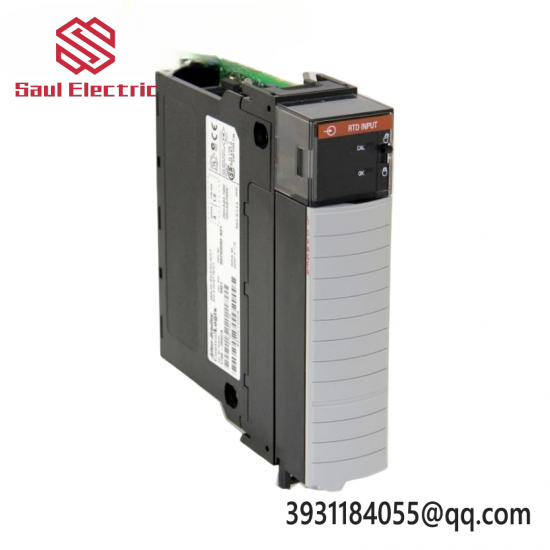

A-B 1756-IR6I Allen-Bradley ControlLogix Analog RTD Module
The Allen-Bradley 1756-IR6I is a high-precision analog input module engineered for industrial temperature monitoring in ControlLogix automation systems. It features 6 isolated channels for RTD (Resistance Temperature Detector) and thermocouple inputs, delivering accurate measurements from -200°C to 1200°C. Designed for critical process applications like chemical processing and power generation, this module ensures reliable data acquisition in harsh environments with its channel-to-channel isolation and wide operating temperature tolerance.
| Specification | Value |
|---|---|
| Manufacturer | Allen-Bradley |
| Model Number | 1756-IR6I |
| Module Type | Analog Input |
| Channels | 6 (Isolated) |
| Input Range | -200°C to 1200°C / RTD 0-100% |
| Power Supply | 24 VDC |
| Current Consumption | ≤150 mA |
| Operating Temperature | 0°C to 60°C |
| Certifications | CE, UL, RoHS |
This module excels in temperature-critical applications including boiler control, reactor monitoring, and HVAC systems. It integrates seamlessly with ControlLogix chassis (1756-A4, A7, A10, A13, A17) and pairs with backplanes like 1756-CNB. Compatible with RSLogix 5000 software, it supports Type J/K/T/E/N/B/S/R thermocouples and 2/3-wire RTDs. For full system compatibility verification, consult our engineers.
About Hong Kong Saul Electric: As a certified Allen-Bradley partner with 15+ years of industrial automation expertise, we maintain Asia’s largest inventory of specialized components. Our technical team provides personalized pre-sales configuration guidance and 1-year warranty on all products. If this model doesn’t match your requirements, contact us via WhatsApp for alternatives. Competitive pricing available upon inquiry at 3931184055@qq.com.
