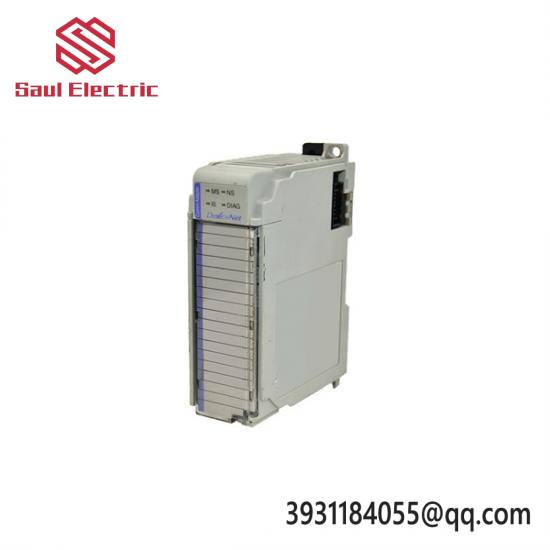

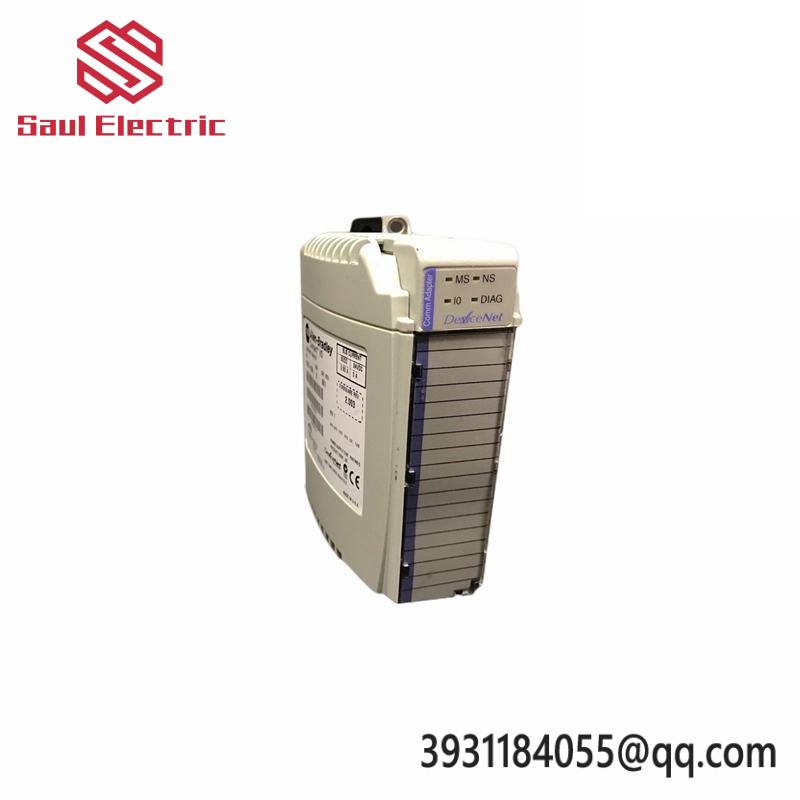

Allen-Bradley 1769-ADN Analog Input Module
The Allen-Bradley 1769-ADN is a high-performance analog input module designed for precision signal acquisition in industrial automation systems. With 8 configurable channels supporting both 0-10VDC and 4-20mA signals, it enables accurate process monitoring and control in demanding environments like manufacturing plants and energy facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-ADN |
| Type | Analog Input Module |
| Input Channels | 8 |
| Signal Range | 0-10 VDC / 4-20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% Full Scale |
| Sampling Rate | 100 samples/sec |
| Operating Voltage | 24 VDC |
| Dimensions | 100 × 75 × 50 mm |
| Protection Rating | IP20 |
| Temperature Range | -40°C to 85°C |
Application Scenarios
This module excels in process control applications including pressure monitoring, temperature regulation, and flow measurement systems. It integrates seamlessly with Allen-Bradley CompactLogix controllers and pairs effectively with complementary modules like 1769-IF8 and 1769-OB16. Ideal for:
- Chemical processing plants
- Power generation systems
- Water treatment facilities
- HVAC control systems
