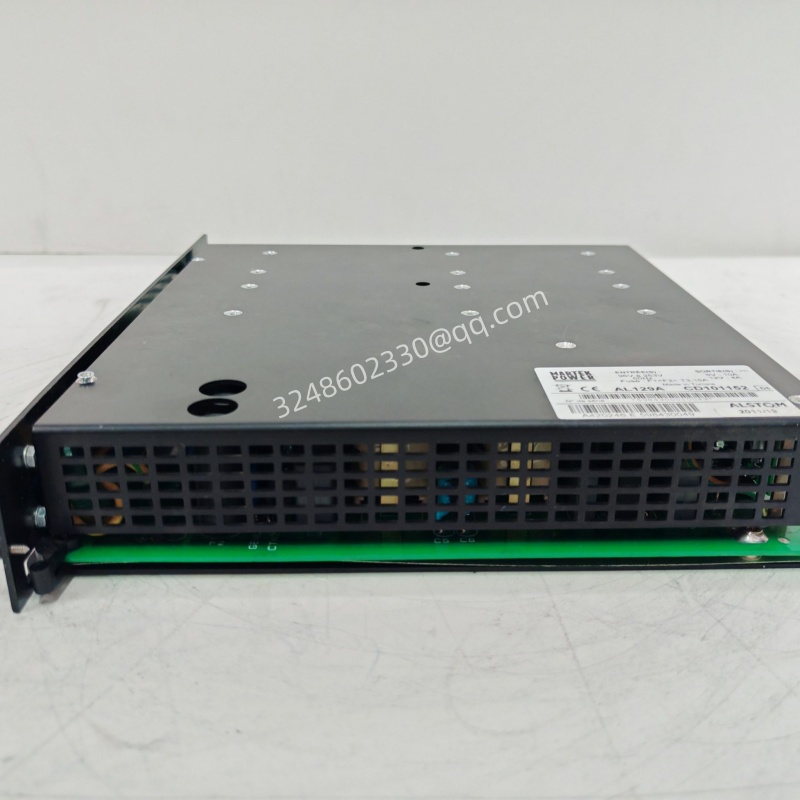

ALSTOM AL129A CD101152 power module

ALSTOM AL129A CD101152 power module
fifteen
According to the latest information retrieved, ALSTOM (now under GE Power Conversion) AL129A (code CD101152) is a high-performance chopper power module designed specifically for industrial control systems such as CE2000 controllers. The following are the detailed technical parameters and application information of the module:

Core technical parameters
Power type: Chopper power module, with electrical isolation function, can provide stable DC power supply.
Input voltage range: 96 VAC to 253 VAC (compliant with global industrial grid standards).
Rated operating voltage: 230 V (typical value).
Rated output voltage: Provides two independent isolated DC outputs:
5 VDC: The maximum output current is approximately 10 A.
12 VDC: The maximum output current is approximately 4 A.
Power consumption: approximately 120 W (typical value).
Frequency response: approximately 60 kHz (typical value).
Physical specifications and environment
Size: Approximately 125 mm x 60 mm x 115 mm (slightly different depending on supplier, approximately 5 x 2.5 x 4.5 inches).
Weight: Approximately 0.9 kg (some data shows around 2.02 kg, possibly due to different chassis structures).
Working temperature range: -25 ° C to+70 ° C (some data shows -10 ° C to+60 ° C).
Storage temperature: -25 ° C to+85 ° C.
Certification: Passed international certifications such as CE, UL508, RoHS, etc.
Compatibility and application scenarios
Compatible system: mainly used for ALSTOM CE2000 control systems, such as AM163, AM164, or AM166 CE2000 framework. Usually connected to the FB178 bus board.
Application areas: Widely used in the field of industrial automation, including process automation, manufacturing control, energy management, and other scenarios, providing stable power support for various modules in control systems.
Features: It has high efficiency (about 94%), high reliability, and modular design, supporting single machine or redundant configurations.
