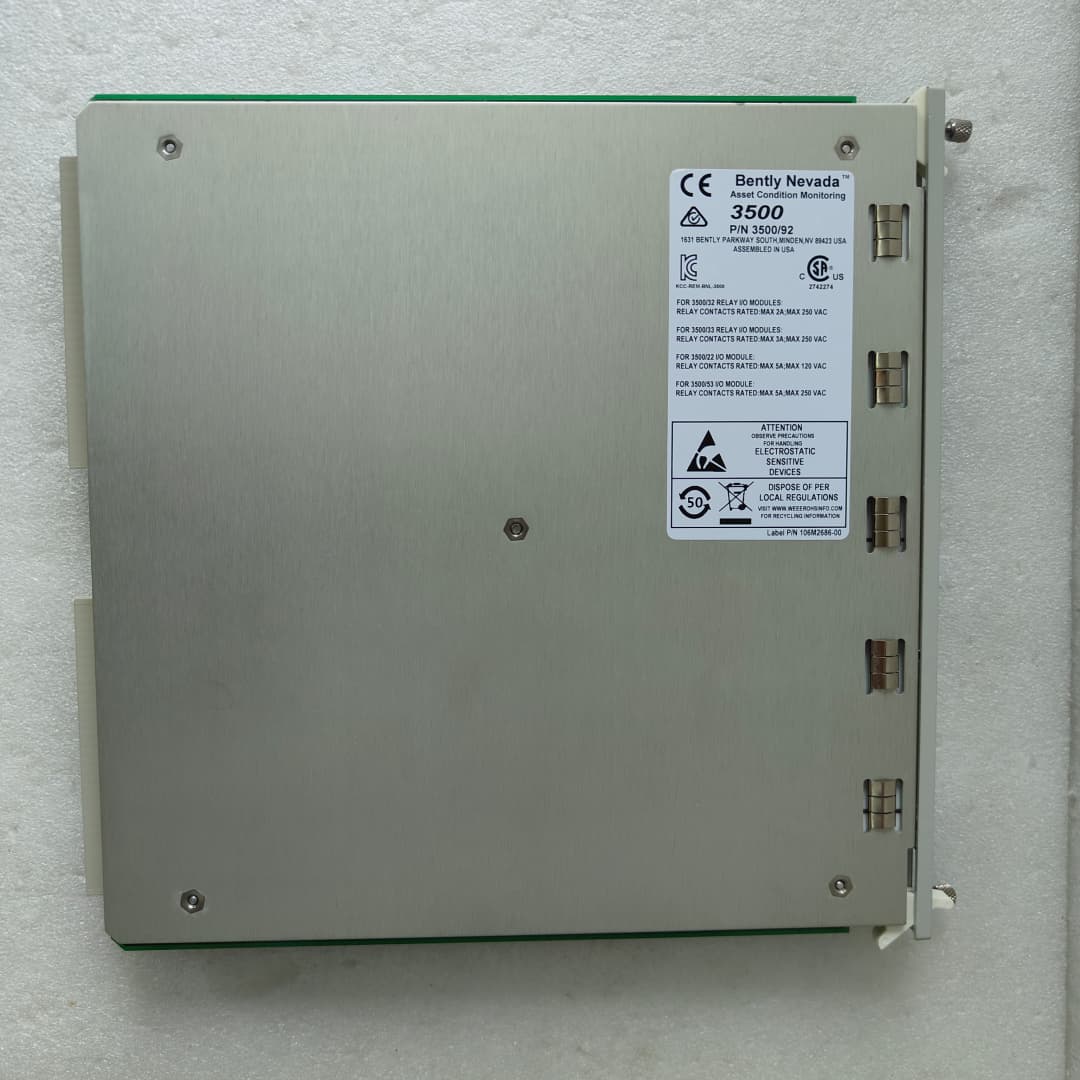

Product Overview
The 3500/92-04-01-01 is a communication gateway module manufactured by Bently Nevada (now part of GE/Baker Hughes), serving as a core communication component within the 3500 series mechanical vibration monitoring and protection system. This module acts as a data bridge between the 3500 monitoring framework and higher-level systems (DCS/PLC/SCADA), providing extensive serial and Ethernet communication capabilities.

oplus_0

📌 Model Interpretation: 3500/92-04-01-01 → 92 = Communication Gateway | 04 = RS485 Modbus | 01 = External Terminal | 01 = No Explosion-Proof Certification

📌 Core Function: Upload real-time data from all monitoring modules (vibration, displacement, speed, temperature, alarm status, etc.) in the 3500 framework to DCS/PLC/SCADA, while simultaneously receiving control commands from lower-level systems.

Model Interpretation
Field | Code | Meaning
3500 | — | Bently Nevada 3500 Series Mechanical Monitoring System
92 | — | Communication Gateway Module
04 | — | RS485 Modbus RTU Serial Communication Interface
01 | — | External Terminals
01 | — | No certification from approval body (CN explosion-proof certification is 00)

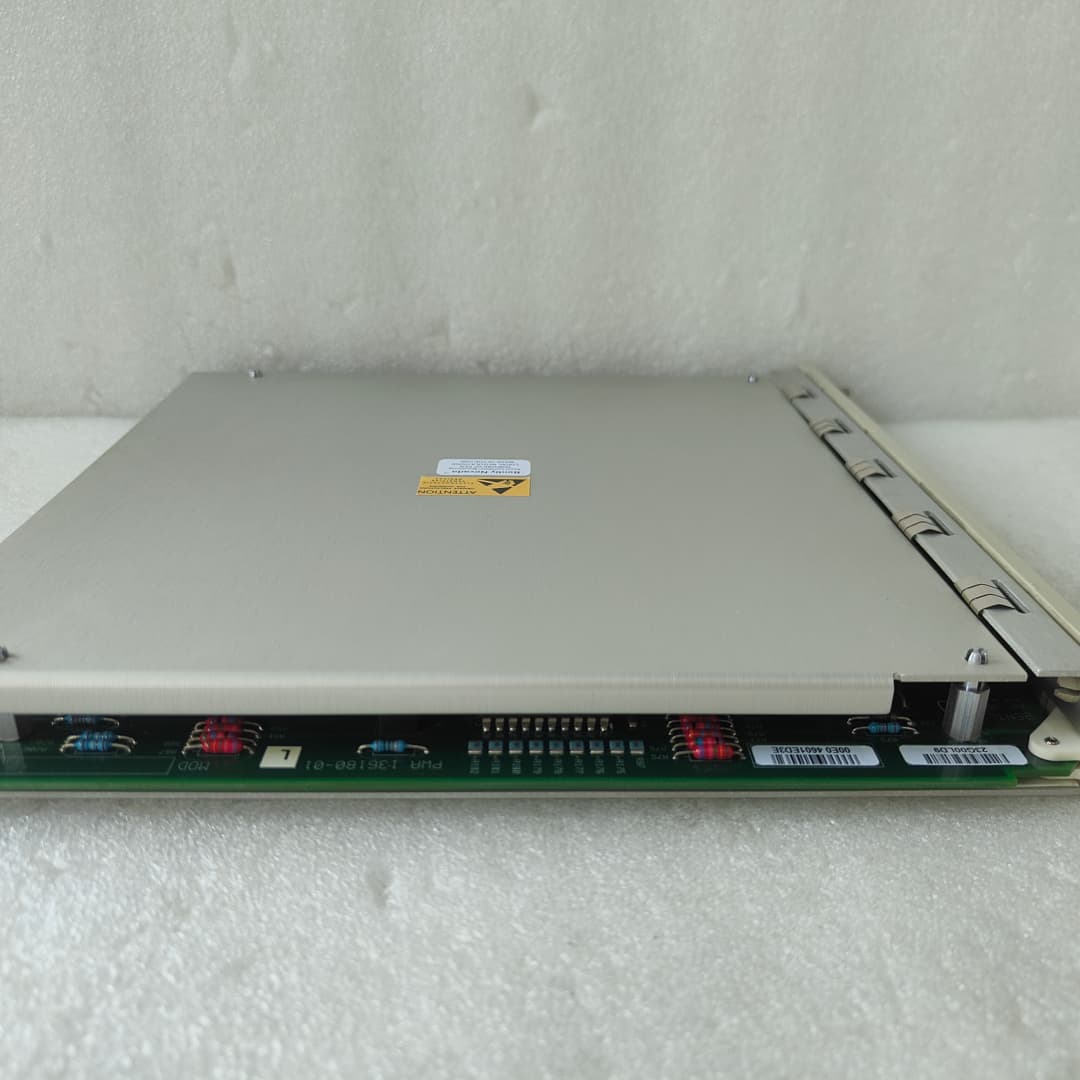

Order Number | 136180-01 (PWA) / 136188-02 | Official Bently Nevada order number

Key Technical Specifications
Parameter | Specification
Brand | Bently Nevada (GE / Baker Hughes)
System Belonging | 3500 Series Mechanical Vibration Monitoring and Protection System
Module Type | Communication Gateway Module
Communication Interfaces | ✅ Ethernet TCP/IP (10BASE-T, RJ45)
✅ RS485 Modbus RTU (Option 04)
✅ RS232/RS422 Modbus RTU (Optional Option 02)
Supported Protocols | ✅ Modicon Modbus RTU (Serial Port)
✅ Modbus/TCP (Ethernet)
✅ Bently Nevada Proprietary Protocol (BNC Protocol, for communication with 3500 rack configuration/data acquisition software)
Operating Voltage | 24VDC (supplied by 3500/15 rack power supply)
Power Consumption | RS232/RS422 Mode: 5.0W (typical)
RS485 Mode: 5.6W (typical)
Operating Temperature | -30°C ~ +65°C
Storage Temperature | -40°C ~ +85°C
Humidity | 95%, non-condensing
Protection Rating | IP20 (for cabinet installation)
Installation Method | 19-inch EIA Rail / Panel Mount / Wall Mount
Rack Occupancy | 1 full-height front slot
Dimensions (H × W × D) | 241 mm × 24.4 mm × 242 mm
Weight | 0.82 kg

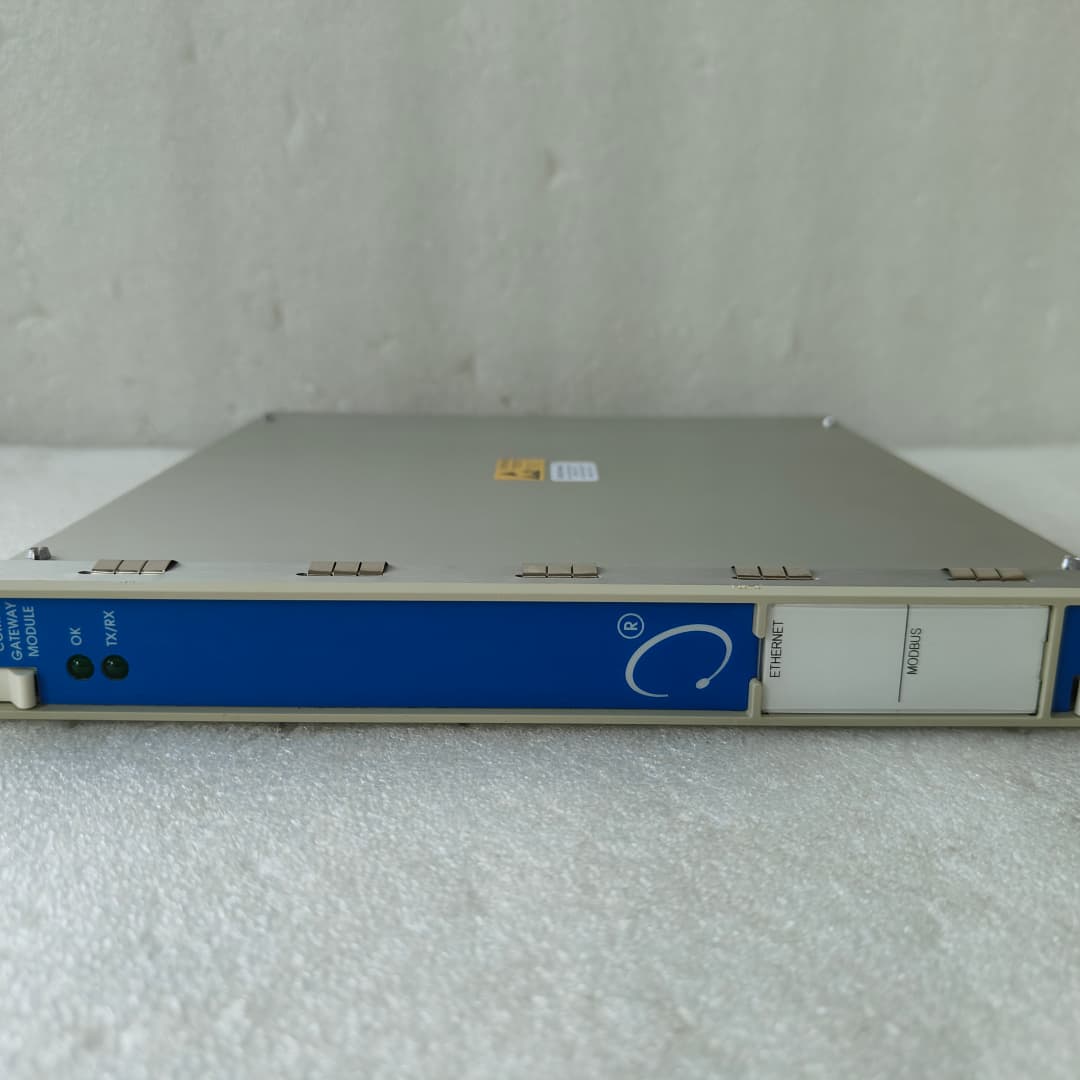

Front Panel LEDs | ✅ OK (green, normal operation)
✅ TX/RX (data transmit/receive indicators)
Functional Safety Level | SIL 2 (IEC 61508)
System Configuration Protection | ✅ Software password protection to prevent unauthorized configuration changes
Configuration Software | 3500/01 Rack Configuration Software
Data Acquisition Rate | ≤ 1 second (depending on rack design)
Compliance Standards | API 670 / IEC 61508 SIL 2 / IEEE 802.3
Production Status | ⚠️ Discontinued (Stop Production); market supply mainly consists of inventory or decommissioned units

System Architecture and Working Principle
┌──────────────────────────────────────────────────────────────────┐
│ 3500 Series Monitoring System Communication Architecture │ │ │
│ ┌─────────────┐ TDI Bus ┌───────────────────┐ │
│ │ 3500/40 │◄══════════════►│ 3500/92-04-01-01 │ │
│ │ Vibration Monitor │ │ Communication Gateway Module │ │
│ └──────┬──────┘ │ · Ethernet TCP/IP │ │ │ │ │ · RS485 Modbus RTU │ │
│ ┌──────▼──────┐ │ · BNC proprietary protocol │ │
│ │ 3500/42 │ │ · Password-protected configuration │ │
│ │ Speed/Acceleration │ └───────┬───────────┘ │
│ └──────┬──────┘ │ │
│ │ │ │
│ ┌──────▼──────────────────────────────▼───────────────────┐ │
│ │ 3500/05 Instrument Frame │ │
│ │ ┌─────────────────────────────────────────────────┐ │ │
│ │ │ 3500/92-04-01-01 Gateway │ │ │
│ │ │ ┌──────────┐ ┌──────────┐ ┌──────────────┐ │ │ │
│ │ │ │ Ethernet │ │ RS485 │ │ BNC Proprietary Protocol │ │ │ │
│ │ │ │ RJ45 │ │ Modbus │ │ (Configuration/Data Acquisition) │ │ │ │ │ │ │ │ 10BASE-T │ │ RTU │ │ │ │ │ │
│ │ │ └────┬─────┘ └────┬─────┘ └──────┬───────┘ │ │ │
│ │ └───────┼─────────────┼───────────────┼───────────┘ │ │
│ └──────────┼─────────────┼───────────────┼───────────────┘ │
│ │ │ │ │
│ ┌───────▼───┐ ┌─────▼─────┐ ┌─────▼──────┐ │
│ │ DCS/PLC │ │ Modbus │ │ 3500 Frame │ │
│ │ SCADA │ │ Slave Devices │ │ Configuration Software │
│ │ (Host Computer) │ │ (Instruments/VFDs) │ │ (System 1) │ │
│ └───────────┘ └───────────┘ └────────────┘ │
└──────────────────────────────────────────────────────────────────┘

oplus_0

Detailed Overview of the Three Communication Channels

| Communication Channel | Interface | Protocol | Purpose | Typical Applications |
|———————–|———|———-|———|———————-|
| 🌐 Ethernet TCP/IP | RJ45, 10BASE-T | Modbus/TCP + BNC Proprietary Protocol | Connect DCS/PLC/SCADA and upload real-time monitoring data | Host computer integration |
| 📡 RS485 Modbus RTU | Shielded Twisted Pair | Modicon Modbus RTU | Connect Modbus slave devices (VFDs, instruments, etc.) | Field device communication |
| 🔧 BNC Proprietary Protocol | Ethernet | Bently Nevada Proprietary Protocol | Connect 3500 frame configuration software and System 1 data acquisition software | System configuration and data acquisition |

Core Functions

| Function | Description |
|——–|————-|
| 🌐 Ethernet Communication | 10BASE-T star topology, RJ45 connection, IEEE 802.3 standard; supports Modbus/TCP and BNC proprietary protocol |
| 📡 RS485 Modbus RTU | Supports Modicon Modbus RTU protocol; can connect up to 32 Modbus slaves |
| 📡 RS232/RS422 Modbus RTU | Supported via Option 02; enables point-to-point Modbus device connections |
| 🔧 BNC Proprietary Protocol | Communicates with 3500/01 frame configuration software and System 1 data acquisition software | 📊 High-speed data acquisition: Collects real-time measurements with timestamps, module status, and alarm status from other modules within the frame via an internal high-speed network, with update rates ≤ 1 second
🔒 Password protection: System configuration is secured by software password to prevent unauthorized changes
✅ Configurable Modbus registers: Built-in configurable Modbus register utility replaces traditional master value registers
🛡️ Functional safety: SIL 2 compliant (IEC 61508), meeting requirements for safety-critical communications
🔌 Hot-swappable: ✅ Supports online replacement (RIUP) without system downtime
📈 API 670 certified: Complies with American Petroleum Institute mechanical protection standards

3500/92 Series Model Comparison
Model | Order Number | Communication Interface | Features | Power Consumption
⭐ 3500/92-04-01-01 | 136180-01 | RS485 Modbus + Ethernet | ⭐ This product (04=RS485) | 5.6W
⭐ 3500/92-02-01-01 | 136180-01 | RS232/RS422 Modbus + Ethernet | 02=Serial port | 5.0W
⭐ 3500/92-01-01-01 | 136180-01 | Ethernet only (BNC protocol) | 01=Pure Ethernet | 5.0W
3500/92-01-01-00 | 136180-01 | Ethernet only | No TX/RX LED | 5.0W
3500/92-04-01-00 | 136188-02 | RS485 Modbus + Ethernet | 00=Partial configuration differences | 5.6W
3500/92-02-01-00 | 133323-01 | RS232/RS422 + Ethernet | 02=Serial port | 5.0W
3500/92-01-01-00 | 125736-01 | Ethernet only | Early version | 5.0W

Typical Application Scenarios
Industry | Application | Communication Method
⚡ Power | Turbine/generator monitoring data upload to DCS | Ethernet Modbus/TCP
🛢️ Petrochemical | Compressor/pump unit status upload to SIS | RS485 Modbus RTU
🏭 Metallurgy | Rolling mill/blast furnace fan monitoring data integration | Ethernet + RS485
💧 Water | Large pumping station operational data upload to SCADA | Ethernet Modbus/TCP
🏗️ Building | Chiller/fan monitoring | RS485 Modbus RTU
🚢 Marine | Propulsion system status monitoring | Ethernet

Commonly Paired Modules (3500 Ecosystem)
Module Model | Order Number | Type | Function | Description
3500/05-01-01-00 | 125800-02 | Instrument Frame | 14-slot standard frame | ⭐ Required
3500/15-02-02-00 | 133292-01 | Power Module | Dual-redundant 24VDC | ⭐ Required
3500/20-01-01-00 | 125736-01 | Frame Interface Module | TDI bus
