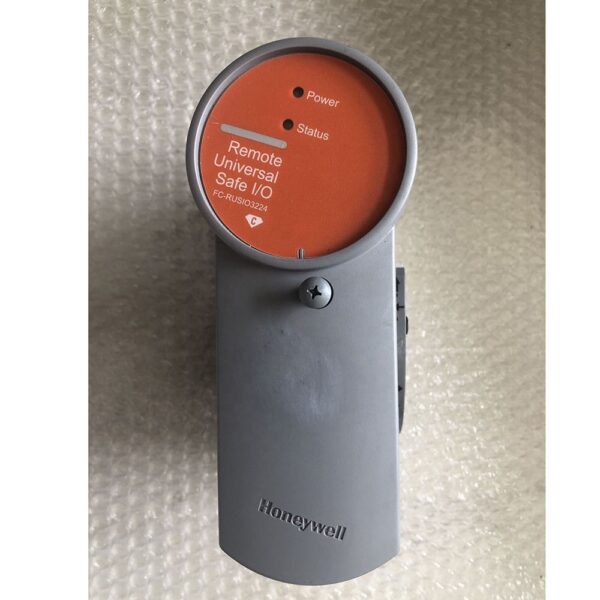

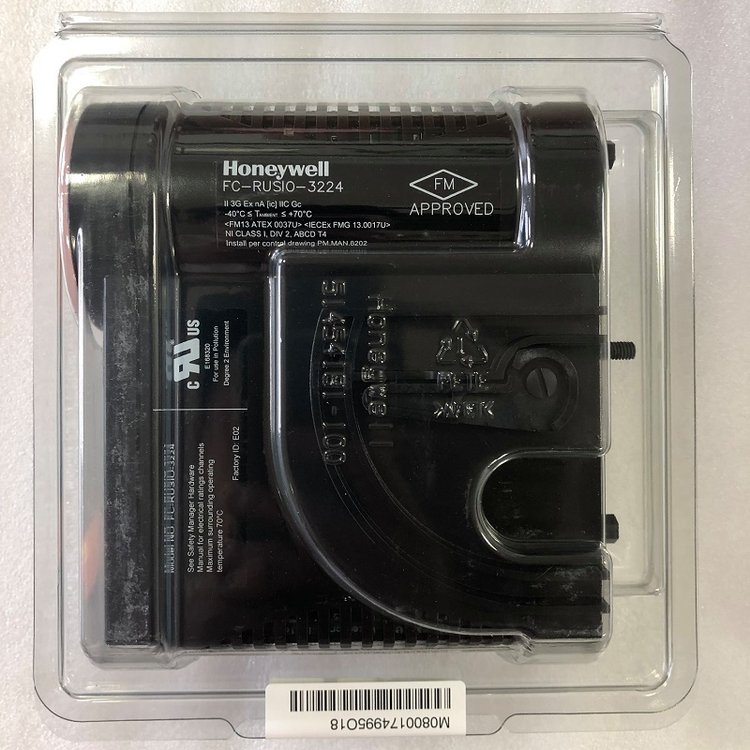

FC-RUSIO-3224 Remote Universal Safety I/O Module

FC-RUSIO-3224 Remote Universal Safety I/O Module
Product Overview
FC-RUSIO-3224 is a remote universal safety input/output (I/O) module produced by Honeywell in the United States. It belongs to the core component of the Safety Manager safety management system and is widely used in the distributed control system of Expert PKS/TPS DCS for the safe acquisition and control output of field equipment signals.

Model Interpretation
Meaning of field codes
FC – Field Controller Series Identification
RUSIO – Remote Universal Safe I/O
32-32 configurable I/O channels
24-24VDC working voltage/24 channel configuration
📌 This module is a safety I/O node for Honeywell Safety Builder software configuration management, which communicates with the Safety Manager controller through the LONWorks fieldbus.

Core technical parameters
Parameter specifications
Brand Honeywell
System Safety Manager/Expert PKS/TPS DCS
Module type: Remote universal secure I/O module
Up to 32 configurable I/O channels (flexible combination of DI/DO/AI)
Supports signal digital I/O, analog input (AI), and HART protocol
Safety level SIL 3 (IEC 61508)/EN 62061/ISO 13849-1 Cat. 4/PL e
Fieldbus LONWorks, transformer isolation, 78 kbps
Working voltage 24VDC, maximum 300mA
Signal conversion supports 0~20 mA ↔ 0~10 VDC conversion (via XS831 terminal)
Galvanic isolation between electrical isolation channels and between channels and systems**
Environmental temperature -40 ° C~+70 ° C
Relative humidity 10%~95% RH
Installation method: Base mounted, supporting auxiliary terminal XS831
Protection level IP20 (installed inside the cabinet)
Size approximately 2 × 19 × 12.8 cm
Weight approximately 2.3 kg
Configuration tool Safety Builder (graphical safety configuration software)
System architecture and working principle
┌──────────────────────────────────────────────────────┐
│ Safety Manager Controller │
│ (Safety Instrumented System SIS Core) │
└──────────────────────┬───────────────────────────────┘
LONWorks bus (78kbps, isolated)
│
┌────────────▼────────────┐
│ FC-RUSIO-3224 │
│ Remote universal secure I/O module │
│ ┌───┬───┬───┬───┐ │
│ │DI │DI │AI │DO │ . .. │← 32 channels configurable
│ └─┬─┴─┬─┴─┬─┴─┬─┘ │
│ │ │ │ │ │
└─────┼───┼───┼───┼───────┘
│ │ │ │
┌───────▼┐ ┌▼───▼┐ ┌▼───────┐
│ On site sensors │ │ actuators │ │ HART instruments │
│ (Switch/Instrument) ││ (Valve) ││ (Transmitter) │
└────────┘ └─────┘ └────────┘
working principle
Stage description
The input stage module receives on-site sensor/switch signals → through photoelectric isolation → AD/DA conversion → digital signals are uploaded to the Safety Manager
During the output phase, the Safety Manager issues control commands → digital signals → DO drives → drives on-site actuators (relay/transistor outputs)
The safety monitoring system has built-in self diagnostic function, which automatically triggers safety actions in case of faults and reports detailed diagnostic information through LONWorks
core advantage
Advantages Explanation
🔒 High safety level SIL 3/Cat.4/PL e, meeting the strictest functional safety requirements
🔧 Flexible and configurable 32 channel DI/DO/AI combination to meet different on-site needs
🌐 HART supports direct access to HART smart meters without the need for an additional gateway
🛡️ Electrical isolation between channels and systems, with strong anti-interference ability
📊 Remote diagnosis through Safety Builder for real-time monitoring and fault location
🌡️ Wide temperature operation -40 ° C~+70 ° C, suitable for extreme industrial environments
🔄 Redundant design supports redundant parallel operation, and a single point of failure does not affect the system
Typical application scenarios
Industry Applications
🏭 Emergency shutdown protection and valve interlock control for power turbine/generator
🛢️ Petrochemical reactor safety interlock and ESD emergency shutdown system
⚡ Chemical hazardous area safety monitoring, toxic gas alarm linkage
🔧 Metallurgical blast furnace/converter safety protection, cooling water system monitoring
🏗️ Building fire linkage control and security access control system
Frequently paired modules and systems
Matching product function
Safety Builder graphical safety configuration software
FC-SCNT01 Safety Controller Module (SIS Core)
CC-PDIL51 series 8-digit input module (PKS compatible)
CC-PDOB01 series 8-digit output module (PKS compatible)
FS-CCI-HSE-30/60 Honeywell Safety Relay Module
