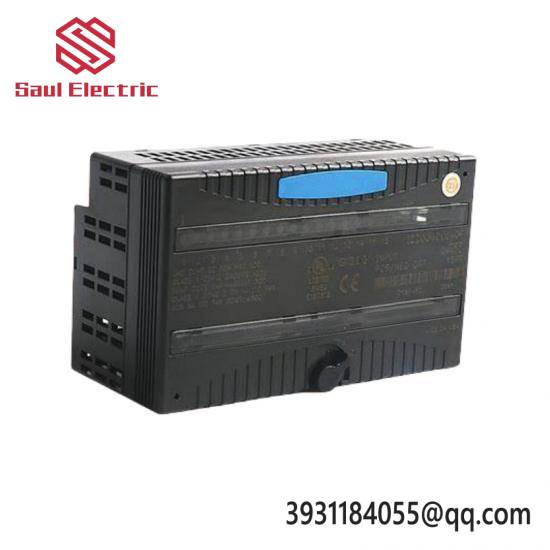

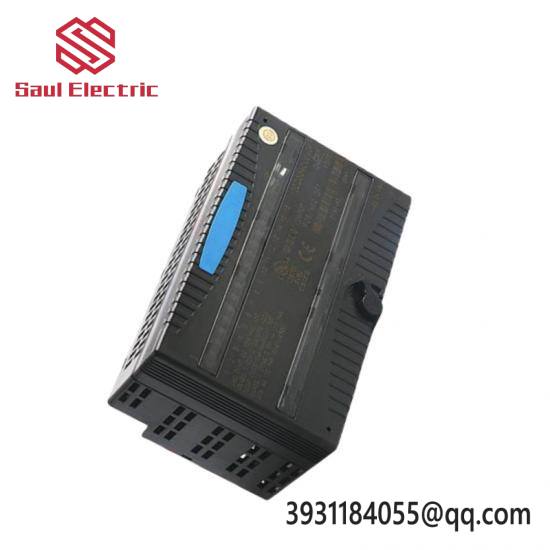

GE HWA143-TDM-PMC-V20: High-Performance Industrial Data Acquisition Module
The GE HWA143-TDM-PMC-V20 is a precision-engineered industrial module designed for critical data acquisition and signal processing applications. It delivers reliable collection, conversion, and transmission of analog/digital signals in demanding environments like power generation facilities, manufacturing plants, and transportation control systems. Engineered for seamless integration with GE’s industrial control platforms, this module ensures high-fidelity data handling in mission-critical operations.
Technical Specifications
| Manufacturer | General Electric |
| Model | HWA143-TDM-PMC-V20 |
| Module Type | Industrial Control Module |
| Input Channels | 32 differential / 64 single-ended |
| Sampling Rate | 1 MHz per channel |
| Resolution | 16-bit ADC |
| Voltage Range | ±10V |
| Operating Voltage | 24VDC (3.3V/5V compatible) |
| Data Rate | 100 Mbps |
| Protocols | TDM, PMC |
| Dimensions | 150 × 100 × 50 mm |
| Weight | 1.5 kg |
| IP Rating | IP65 |
| Temperature Range | -40°C to +85°C |
Industrial Applications & Compatibility
This module excels in vibration monitoring systems, turbine control installations, and safety-critical DCS/PLC configurations. Its PMC form factor enables direct integration into PCI-based industrial computers and GE Mark VIe control systems. Commonly paired with GE’s HWA series I/O modules and compatible with Bentley Nevada 3500 monitoring systems for comprehensive plant protection solutions.
Why Choose Hong Kong Saul Electric?
As GE’s certified industrial automation partner, Hong Kong Saul Electric provides:
- Pre-sales technical consultation by certified automation engineers
- 1-year performance warranty on all supplied components
- Priority sourcing for discontinued and hard-to-find GE modules
- Same-day shipping from our extensive Asian inventory hub
- 24/7 emergency technical support for critical operations
For pricing and availability, contact us via WhatsApp or email 3931184055@qq.com. Our specialists can source compatible alternatives for obsolete models within 24 hours.
Hong Kong Saul Electric Co., Ltd. – Your trusted industrial automation partner since 2008. We maintain Asia’s largest inventory of discontinued and specialized components from 40+ top brands including GE, ABB, and Triconex. Certified to supply critical components for SIS, DCS, and turbine protection systems worldwide.
