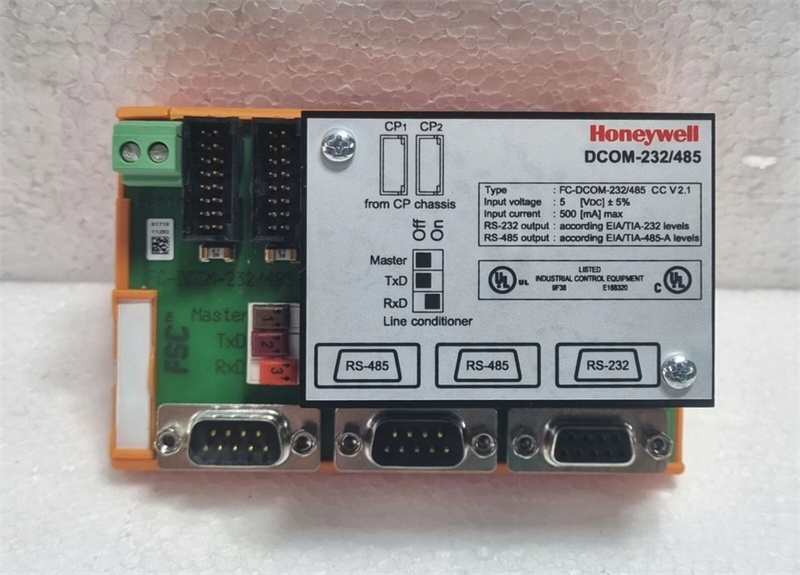

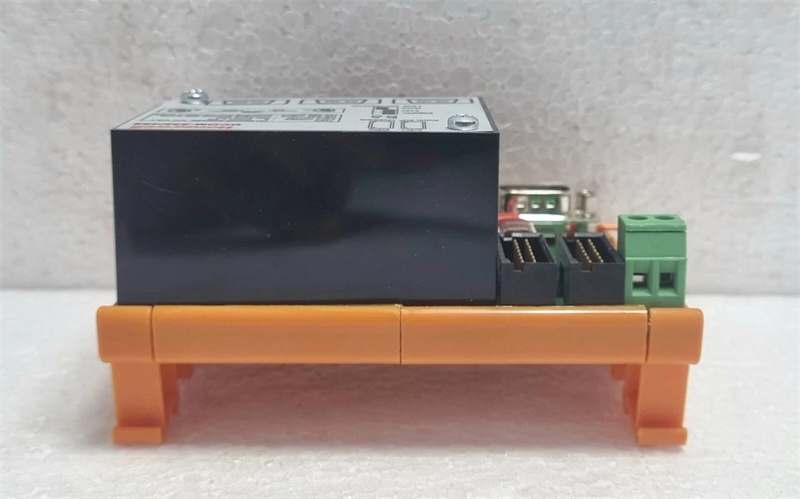

Product details and core functions
This module is an important component in Honeywell’s Safety Management System or DCS (Distributed Control System). Its core function is to serve as a “bridge” to facilitate data exchange between controllers, sensors, or other third-party devices.
Communication capability: Supports RS-232 (point-to-point) and RS-485 (multi-point differential signal) interfaces, able to adapt to different wiring environments and transmission distance requirements.
Network integration: Some versions support TCP/IP communication protocol, which enables seamless connection with the upper layer network and ensures real-time data upload and distribution.
High reliability: specially designed for harsh industrial environments, made of high-quality materials, with strong anti-interference ability and long service life.
Key technical parameter specifications
According to the technical documentation, the specific electrical and environmental parameters of this module are shown in the following table:
table
Parameter Category Specification Description Remarks
Communication interface RS-232/RS-485 supports dual protocols and has strong adaptability
The maximum transmission rate is 115200 bps, which meets the requirements of high-speed data acquisition
Power supply voltage 12-48 VDC wide voltage input, suitable for industrial site power supply
Working temperature range of -40 ° C to+85 ° C, extremely wide temperature range, suitable for severe cold or high temperature environments
Working humidity 5% -95% RH non condensing state
Compact design with physical dimensions of 85mm x 53mm x 25mm, easy to install inside the control cabinet
Lightweight design weighing approximately 60g
Main application areas
Due to its robust design and flexible communication protocol support, FC-DCOM-232/485 is widely used in the following scenarios:
Industrial automation control: used to connect PLC, frequency converter or driver to achieve automated instruction transmission of production line.
Process control: Used in industries such as petrochemicals and power generation to collect on-site instrument data and transmit it to the main control system.
System Integration: Suitable for renovation projects that require connecting old devices (usually only serial ports) to modern Ethernet monitoring systems.
