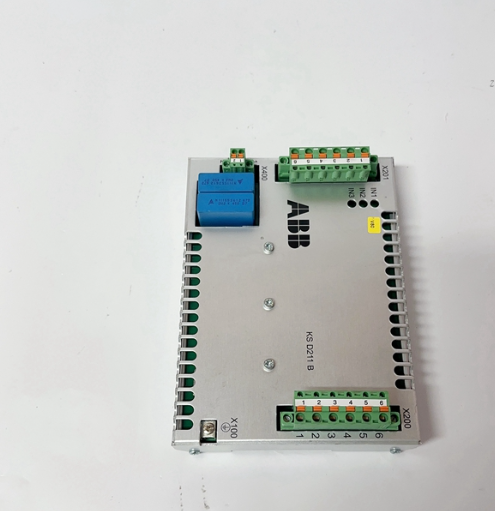

KSD211B KSD211A101 KSD211B101 ABB input coupling device unit

Product details and model relationship
The KSD211B series is a key spare part in industrial automation and power control, mainly used to connect power inputs or signal transmission between different modules.
Core function: As a “bridge”, it allows external signals (analog or digital) or power sources to enter the control system without generating physical direct interference. It has electrical isolation function (withstand voltage up to 500V), which can effectively protect the controller from the influence of high voltage or interference on site.

Model Evolution:
KSD211A101: Early versions, most of which have been discontinued.
KSD211B/KSD211B101: Upgrade to alternative versions. The two functions are basically the same and can usually be directly replaced to support FIP redundant system configuration or I/O sharing between main/auxiliary PLCs.
Order number: 3BHE022455R1101 (this is the most accurate identification code).
Key technical parameters and specifications
According to the technical documentation and actual test data, this module has high noise resistance and fast response capability. The specific parameters are as follows:
table
Parameter Category Specification Description Remarks
Product model KSD211B/KSD211B101 corresponds to order number 3BHE022455R1101
Wide range adaptation of input voltage (such as AC/DC) supports 24VDC or 100VDC, etc., to adapt to different plant power environments
Maximum load capacity of 5A, capable of driving actuators or sensors
The communication interface RS485 supports MODBUS/RTU protocol for easy networking
Physical dimensions 165 x 120 x 50 mm standard modular design, easy to install on rails
The ambient temperature ranges from -10 ° C to+60 ° C, suitable for general industrial temperature changes
The status indicator LED shows the status of normal power supply, module failure, etc
Main application areas
KSD211B is widely used in heavy industry scenarios that require extremely high power supply stability and signal accuracy:
Power system (core application):
Generator excitation control: As the input coupling unit of the UNITOL 6000 system, it ensures the stable connection of the excitation power supply.
Substation: Provides stable power input coupling for relay protection devices to resist grid surges.
Metallurgical industry:
Provide power coupling for ABB S700 PLC or DCS systems in high vibration and high temperature environments such as converters and steel mills to prevent poor contact or power fluctuations caused by vibration.
Petrochemical industry:
DCS control systems used in explosion-proof areas (such as catalytic cracking units) utilize their isolation characteristics to prevent electrical interference between hazardous and non hazardous areas.
water treatment
Power the PLC control system for the aeration fan and dosing pump in high humidity environments.
Maintenance and fault diagnosis suggestions
Fault memory function: KSD211B has a built-in fault memory chip that can record the last 5 fault information (such as the time of overvoltage, overcurrent, and short circuit occurrence). Operations personnel can quickly locate issues by reading these records using ABB’s specialized tools, such as Control Builder M software.
Status monitoring: The module provides dry contact signal output, indicating “power normal” and “module failure” respectively. Operators can monitor in real-time through HMI (Human Machine Interface) without the need for frequent on-site inspections.
Procurement reminder: Due to the discontinuation of KSD211A101, most of the products in circulation on the market are upgraded versions of KSD211B101. When purchasing spare parts, please make sure to check the order number 3BHE022455R1101 to ensure compatibility with the original system.
