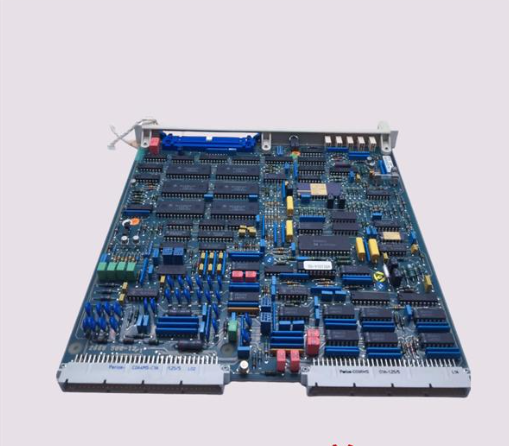

PFSK126 3BSE002097R1 interface board

PFSK126 3BSE002097R1 Channel Control Unit/Interface Board
Product Overview
PFSK126 3BSE002097R1 is a Channel Control Unit produced by ABB in Sweden. It is a core I/O interface board for ABB excitation control systems/power management systems and is widely used in generator excitation control, power distribution, and signal acquisition scenarios.

📌 This module is used in conjunction with PFBK165 excitation controller (3BSE000470R1), GFD563A excitation board (3BHE046836R0101/0102), and other components to form a complete ABB excitation control chain.

Model Interpretation
Meaning of field codes
PFSK-ABB Excitation/Power Control System Board Series Identification
126- Channel Control Unit
3BSE002097R1- ABB Official Order Number
Core technical parameters
Parameter specifications
brand ABB
Belonging to ABB excitation control system/power management system
Module Type Channel Control Unit/Interface Board
Functional positioning multi-channel signal acquisition and control output interface
Multiple channels (usually 16~32 channels depending on configuration)
Signal type: Analog input (AI)+Digital input (DI)+Digital output (DO)
Communication interface internal bus (VME/CompactPCI backplane)+external expandable Profibus/DeviceNet
Working voltage 24VDC (board power supply)
Working temperature -20 ° C~+70 ° C
Protection level IP20 (installed inside the cabinet)
Installation method: VME/CompactPCI chassis slot installation
Production Status ⚠️ Stopped production, the market is dominated by inventory/disassembled parts
Core advantages include high-precision signal acquisition, redundant communication, and dedicated excitation system
System architecture and functionality
┌──────────────────────────────────────────────────────────┐
│ ABB excitation control system/power management system │
│ │
│———————————————————————————–
│ │ PFBK165 │◄══════════════►│ PFSK126 │ │
││ Excitation Controller │ (VME/PCI) │ 3BSE002097R1 ││
││ (Main Control CPU) ││ Channel Control/Interface Board ││
│└———————————————————- ┘│· AI analog input ││
│││· DI digital input ││
││ Given/Feedback │ · DO Digital Output ││
│ ▼ └───────┬──────────┘ │
│ ┌─────────────┐ │ │
││ GFD563A101 ││ Sensor/actuator │
││ Excitation control board ││ (CT/PT/switch) │
│ │ 3BHE046836 │ │ │
│ │ R0101/R0102 │ │ │
│ └─────────────┘ │ │
│ ▼ │
│ ┌──────────────┐ │
││ Generator excitation winding ││
││/Power output terminal ││
│ └──────────────┘ │
└──────────────────────────────────────────────────────────┘
core functionality
Function Description
🔄 Multi channel acquisition supports synchronous acquisition of multiple analog signals (voltage/current) and digital signals
⚡ The excitation control interface is coordinated with the PFBK165 excitation controller to achieve precise control of the generator excitation current
📡 Signal conversion on-site sensor signal (4~20mA/0~10V) → digital signal → main controller
🛡️ Electrical isolation between channels and systems, with strong anti-interference ability
🔌 hot-swapping ✅ Support online replacement (RIOP), the system does not shut down
📊 SOE records the sequence of events with timestamps for easy fault analysis
Ecological Comparison of PFSK Series Products
Model, Order Number, Type, Function
PFSK101 YM322001-ED power supply unit system power supply
PFSK104 YM322001-EB Signal Processing Board DSP Signal Processing
PFSK106 YM322001-EC Channel Control Board Basic Channel Control
PFSK108 YM322001-EH connection unit communication connection
PFSK109 YM322001-EK connection unit communication connection
PFSK110 YM322001-EP Channel Control Unit Channel Control
⭐ PFSK126 3BSE002097R1 Channel Control Unit ⭐ This product (multi-channel interface)
PFSK130 3BSE002616R1 Channel Control Unit Extended Channel
PFSK142 3BSE006505R1 Control Board System Control
PFSK151 3BSE018876R1 DSP Signal Processing Advanced Signal Processing
PFSK152 3BSE018877R1 signal concentrator signal aggregation
PFSK163 3BSE016323R1 Profibus Communication Board Fieldbus Communication
PFSK164 3BSE021180R1 Front Panel/Interface Front Panel Interface
PFSK165 3BSE027778R1 VP7 server motherboard system core processing
PFSK167 3BSC980136R1 Front Panel Operation Display Panel
PFSK193 3BSC62104R1 server motherboard system host
Typical application scenarios
Industry Applications
⚡ Excitation control of power generators, switching of plant power, AVR automatic voltage regulation
🛢️ Petrochemical backup power management, UPS switching control
🏭 Metallurgical blast furnace/converter power monitoring, rectifier control
💧 Power management of large-scale water pumping stations
🏗️ Excitation control of building backup generator
Constant pairing module
Module model, order number, type description
PFBK165 3BSE000470R1 excitation controller ⭐ Core pairing
GFD563A101 3BHE046836R0101 excitation control board excitation drive
GFD563A102 3BHE046836R0102 excitation control board excitation drive (backup)
GFD233A103 3BHE02294R0103 excitation board auxiliary excitation
PFSK104 YM322001-EB signal processing board signal preprocessing
PFSK163 3BSE016323R1 Profibus Communication Board Communication Expansion
PFSK165 3BSE027778R1 VP7 server motherboard system core
