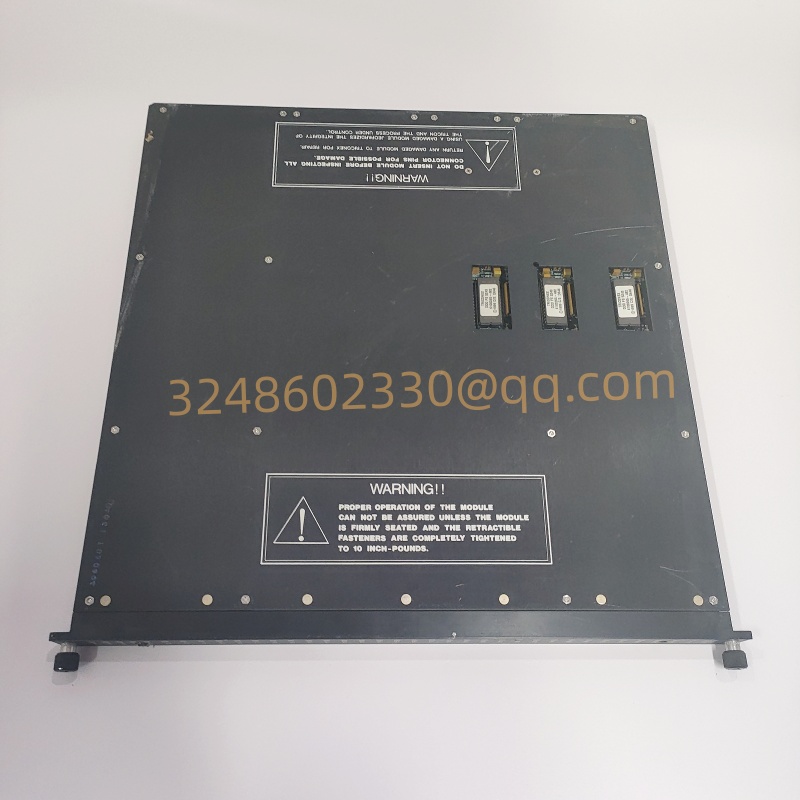

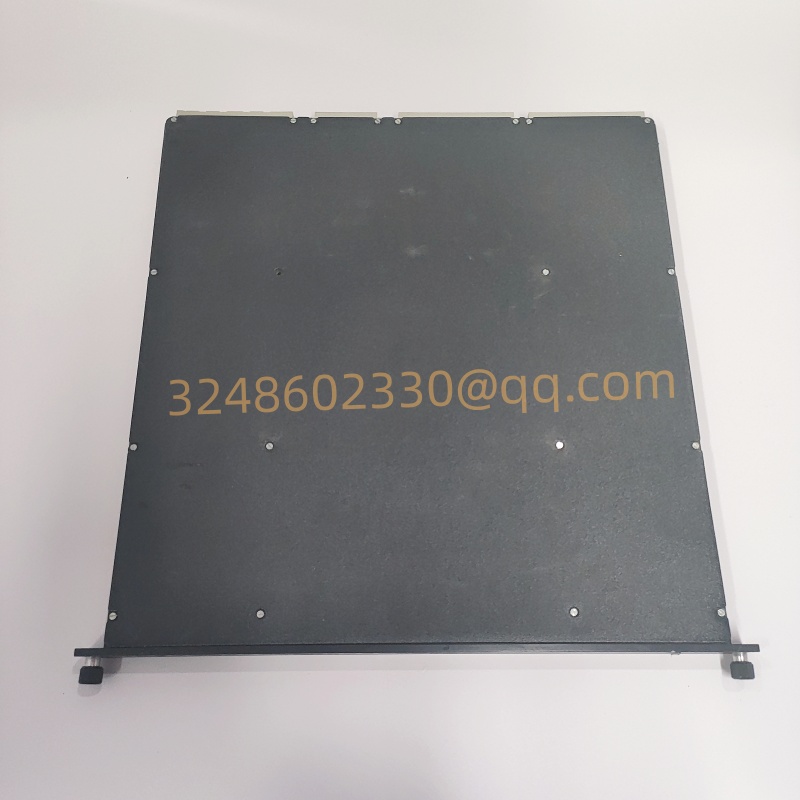

The TRICON 3664/3674 digital controller is a high reliability digital output module designed by Triconex specifically for industrial process safety systems. It adopts a triple module redundancy (TMR) architecture, has high fault tolerance, complete self diagnostic functions, and wide industrial application adaptability.
1、 Core architecture and fault tolerance capability
TMR architecture: The TRICON 3664/3674 module adopts a triple module redundancy design, which includes three identical independent channels inside. Each channel has the ability to independently execute control programs and achieve fault-tolerant control through hardware voting mechanisms. Even if a single channel fails, the system can still maintain normal operation through the remaining channels, ensuring the accuracy and reliability of the output signal.
Fault tolerance technology: This module supports online identification of transient and steady-state faults and automatic correction. The faulty channel can be isolated by other normal channels, and maintenance work (such as module replacement) can be carried out while the system is running without interrupting the control process. This design significantly improves the availability and security of the system.
2、 Functional characteristics and performance advantages

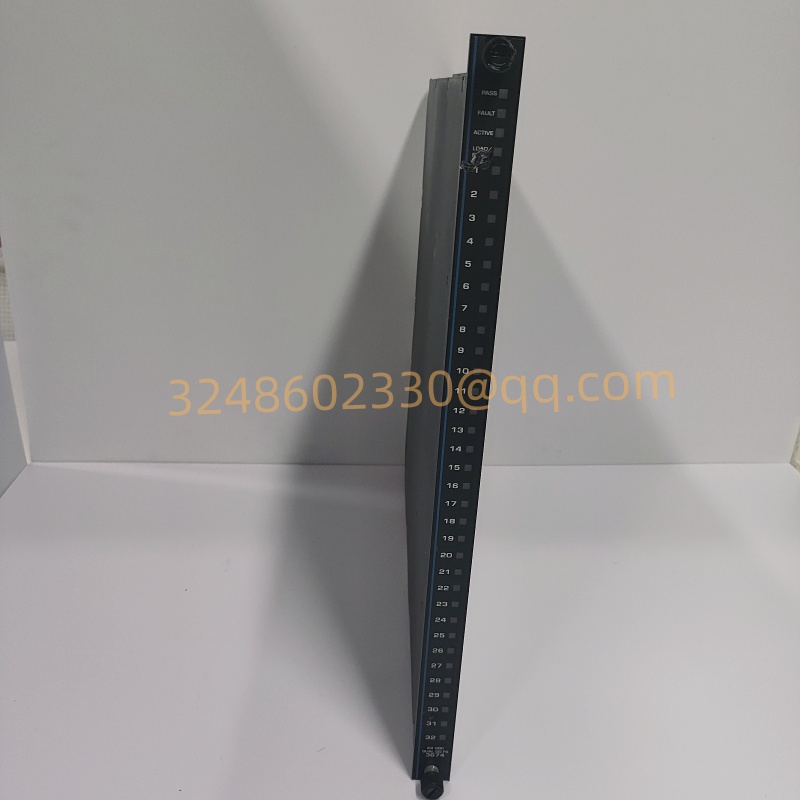

Multi channel digital output: The module provides multi-channel digital output function, with a typical configuration of 32 point output. Each output channel is designed with optoelectronic isolation to effectively prevent interference between channels and ensure the independence of the output signal.
Output type and load drive: Supports relay or transistor output types, which can directly drive on-site loads. The output current capacity is high, which can meet the driving requirements of small and medium power loads.
Short circuit and overload protection: The module has a built-in short circuit and overload protection mechanism. When the output channel experiences a short circuit or overload, the system can automatically cut off the output to prevent equipment damage and improve system reliability.
Self diagnosis and status monitoring: Equipped with comprehensive self diagnosis functions, it can monitor the output signal status, channel health status, hardware faults, and communication integrity in real time. If an abnormality is detected, the system will automatically isolate the faulty channel and issue an alarm signal, while recording the fault information for subsequent analysis.
High speed data transmission and coordination operation: Communicate with the main processing module through the backplane bus to achieve high-speed data transmission and coordination operation. Supports hot swappable function, facilitating module replacement and maintenance, and can be completed without stopping the machine.
3、 Industrial environment adaptability
Anti electromagnetic interference capability: Designed with industrial grade components, it has strong anti electromagnetic interference capability and can operate stably in harsh electromagnetic environments.
Anti vibration and dust-proof design: The module structure is sturdy and has anti vibration and dust-proof functions, which can adapt to industrial site environments with strong vibration and high dust.
Wide temperature working range: Supports working within a wide temperature range to meet the temperature requirements of different industrial scenarios.
4、 Application Fields
The TRICON 3664/3674 module is widely used in industrial fields that require extremely high safety and reliability, including but not limited to:
Petrochemical and natural gas facilities: used for emergency shutdown systems (ESD) to quickly cut off equipment power in case of abnormal conditions, preventing accidents from escalating.
Refining and chemical process safety control: Monitor key process parameters to ensure safe and stable operation of the production process.
Power plant boiler protection and turbine control: protect key equipment such as boilers and turbines from damage, and improve the safety of power plant operation.
Offshore platform and LNG terminal safety system: Ensure the reliable operation of safety systems in harsh environments such as offshore platforms and liquefied natural gas (LNG) terminals.
Core equipment interlocking control and alarm system: Implement interlocking protection for core equipment and promptly issue alarm signals in case of abnormal situations.
5、 Safety Standards and Certification
The TRICON 3664/3674 module complies with the IEC 61508 SIL3 safety integrity level standard, meeting stringent safety and reliability requirements. This standard is a functional safety standard developed by the International Electrotechnical Commission. SIL3 level indicates that the module has a high level of safety integrity and can be applied to industrial scenarios with extremely high safety requirements.
