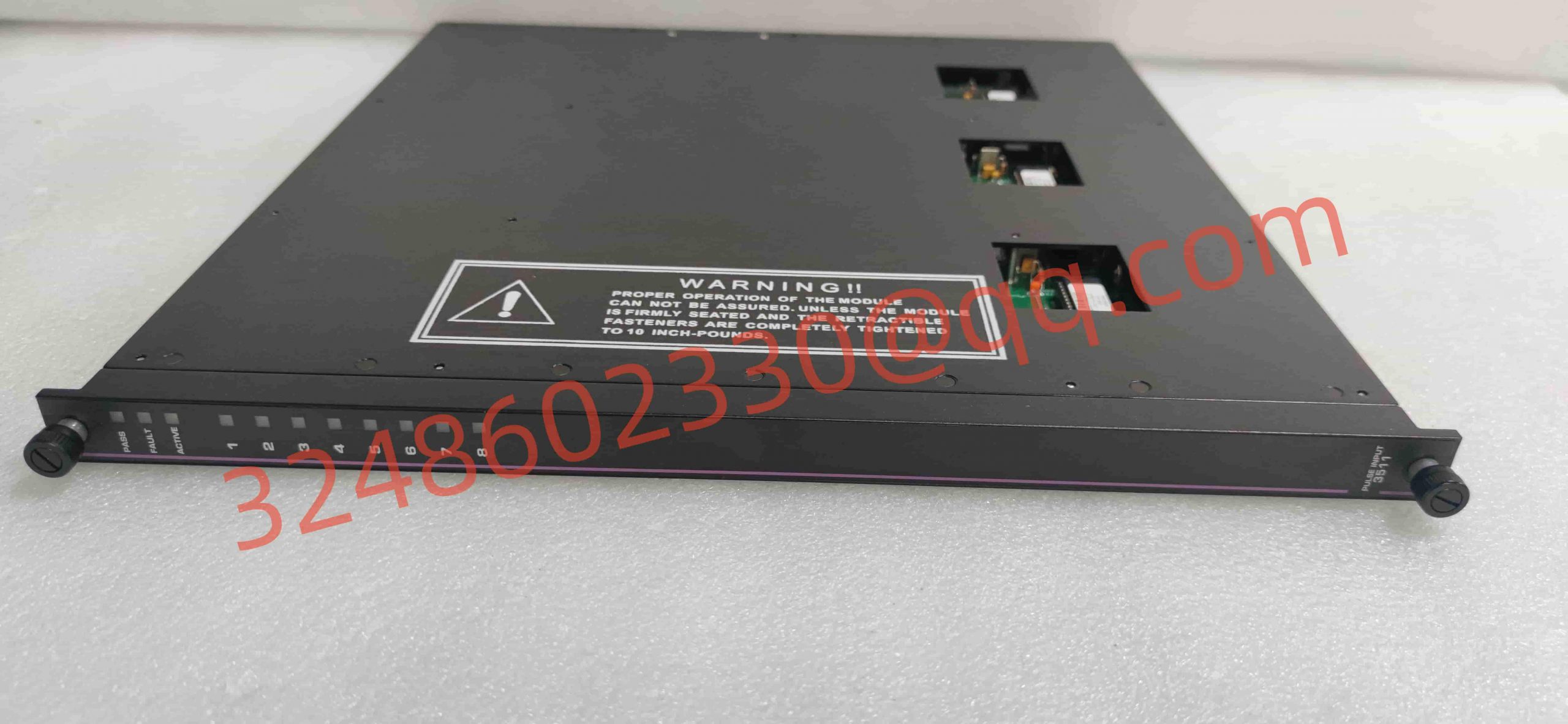

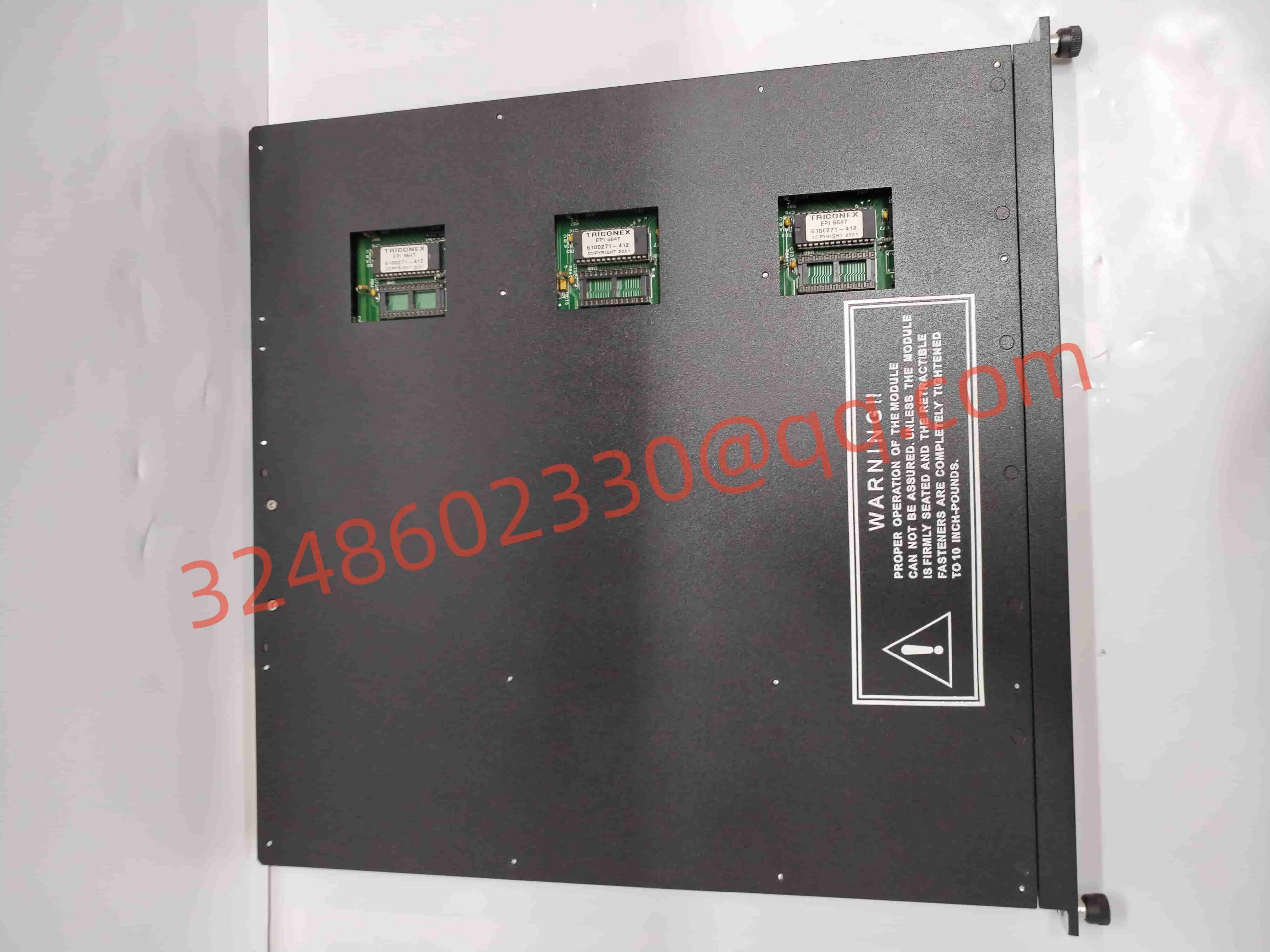

Triconex 3511 Triple Redundancy (TMR) Digital Input/Output Module

Triconex 3511 Triple Redundancy (TMR) Digital Input/Output Module
Product Overview
Triconex 3511 is an 8-channel digital input/output module (Digital I/O Module) produced by Triconex (now Schneider Electric) in the United States. It is the core I/O component of the Tricon 3500 series Safety Instrumented Systems (SIS). This module adopts a Triple Modular Redundancy (TMR) architecture, designed specifically for safety critical applications and widely used in ESD emergency shutdown systems, process control, and status monitoring.

📌 Model interpretation: 3500/11 → 11=8-channel digital I/O module (TMR triple redundancy)

📌 Multi functional features: The 3511 can be configured as either 8-channel digital input (DI) or 8-channel digital output (DO), and supports pulse accumulation input (PTI) function, making it one of the most flexible I/O modules in the Tricon system.

Model Interpretation
Meaning of field codes
3500- Triconex 3500 Series Safety Control System
11-8 channel digital input/output module (DI/DO)
TMR – Triple Modular Redundancy
Order Number 35118400-010 (Standard Edition) Triconex Official Order Number
Core technical parameters
Parameter specifications
Brand Triconex (Schneider Electric/Invensys)
System: Tricon 3500 Series Safety Instrumented System (SIS)/ESD
Module type: 8-channel digital input/output (DI/DO)+pulse accumulation input (PTI)
Number of channels: 8 channels (can be independently configured as DI or DO)
Redundant architecture ✅ TMR Triple Redundancy (3 sets of independent circuits+hardware 2-out-of-3 voting)
Working voltage 24VDC (powered by 3501 power module)
Input type (DI mode) 24VDC digital input, supports dry/wet contacts
Output type (DO mode) 24VDC digital output, relay output (normally open NO)
Pulse input (PTI mode) 8-channel pulse accumulation, 16 bit resolution
Pulse accuracy 1000 Hz~20000 Hz, ± 0.01%
Input characteristics (PTI) AC coupling, balanced differential
Update rate of 25 milliseconds (typical value)
Impedance>8 K Ω (typical value 20 K Ω)
Common mode range -100 VDC~+100 VDC (peak to peak)
Normal mode range 1.5 V~200 V (peak to peak)
Frequency range (PTI) 20 Hz~20000 Hz
Duty cycle 10%~90%
Current range (PTI) 0~20 mA (250 Ω shunt)
Waveform supports sine wave/square wave/pulse
Front panel LED ✅ OK (green)/TX/RX/BYPASS (fault indication)
Protection level IP20 (installed inside the cabinet)
Installation method: 19 inch EIA rail/Tricon chassis slot
The framework occupies one full height slot
Configuration software TriStation 1131 (Tricon configuration and programming software)
Compliant with IEC 61508 SIL 3/ISA S84.01/API 670 standards
Production Status ⚠️ Stopped production, the market is dominated by inventory/disassembled parts
System architecture and working principle
┌──────────────────────────────────────────────────────────────┐
│ Tricon 3500 Safety Control System │
│ │
│ ┌─────────┐ ┌─────────┐ ┌──────────────────────────┐ │
│ │3501/15 │ │3502/11 │ │ 3511 (TMR DI/DO/PTI) │ │
││ Power module ││ Main processor ││· 8-channel digital input/output ││
││ (Dual Redundancy) ││ (Triple Redundancy) ││ · Supports DI/DO/PTI configuration ││
│└——————————————————————————————-
││││· Pulse accumulation 16 bit accuracy ││
│ │ TriBus │ └──────────┬───────────────┘ │
│ │◄══════════►│ │ │
│ │ │ ┌──────▼──────┐ │
│ ┌────▼────────────▼───────────▼─────────────▼────────┐ │
││ 3500/05 Instrument Frame ││
│ │ ┌─────────────────────────────────────────────┐ │ │
│││ 3511 module (TMR triple redundancy) │││
│ │ │ ┌──────────┐ ┌──────────┐ ┌──────────┐ │ │ │
││││ Channel 1 ││ Channel 2 ││ Channel 3 │ .. │ │ │
│ │ │ │ DI/DO/PTI│ │ DI/DO/PTI│ │ DI/DO/PTI│ │ │ │
│ │ │ └────┬─────┘ └────┬─────┘ └────┬─────┘ │ │ │
│ │ └───────┼────────────┼────────────┼─────────────┘ │ │
│ │ │ │ │ │ │
│ └──────────┼────────────┼────────────┼──────────────────┘ │
│ │ │ │ │
│ ┌───────▼───┐ ┌─────▼─────┐ ┌───▼──────┐ │
││ Dry/Wet Contact ││ Electromagnetic Valve ││ Pulse Sensor ││
││ (DI mode) ││ (DO mode) ││ (PTI mode) ││
│ └───────────┘ └───────────┘ └──────────┘ │
└──────────────────────────────────────────────────────────────┘
TMR Triple Redundancy Working Principle
Stage description
Three independent circuit modules contain three completely independent input/output circuits inside
Parallel operation of 3 sets of circuits simultaneously receiving the same input signal or sending the same output instruction
Hardware voting is carried out through a 2-out-of-3 voting mechanism, and any channel failure is automatically blocked
Fault isolation module level fault detection → fault indicator light activation → chassis alarm
The system continues to operate without stopping during a single point of failure without disturbance
SOE records 1ms precision event sequence with timestamp
Detailed explanation of three working modes
Typical Applications of Mode Channel Configuration Function Description
🔌 DI mode (digital input) 8-channel DI receives 24VDC digital signals (dry/wet contacts), TMR voting button, limit switch, valve feedback
⚡ DO mode (digital output) 8-channel DO 24VDC relay output (normally open NO), TMR voting drives solenoid valve, contactor, indicator light
📊 PTI mode (pulse accumulation) 8-channel PTI 16 bit pulse counting, ± 0.01% accuracy, 25ms update rate, turbine/compressor speed measurement, flow accumulation
core advantage
Advantages Explanation
🔒 SIL 3 safety level complies with IEC 61508 SIL 3/ISA S84.01 and is suitable for ESD critical circuits
⚡ TMR Triple Redundancy Hardware Level 2-out-of-3 Voting, Automatic Shielding for Single Point of Failure, System Will Not Stop
🔄 Three modes of the third mock examination in one DI+DO+PTI can be selected. One module can meet multiple requirements
📊 16 bit pulse accuracy ± 0.01% accuracy in PTI mode, 25ms update rate, suitable for high-speed rotating equipment
🛡️ Comprehensive self diagnosis: Each channel is independently diagnosed, and faults are directed to specific channels rather than the entire module
🔌 hot-swapping ✅ Support online replacement (RIOP), the system does not shut down
🌡️ Wide temperature operation -20 ° C~+65 ° C, suitable for harsh industrial environments
📡 TriBus communication 375 kbps high-speed IO bus ensures fast and reliable data transmission
Typical application scenarios
Industry application mode
⚡ Emergency shutdown of power turbine ESD, valve status monitoring DI+DO
🛢️ Petrochemical reactor safety interlock, compressor status monitoring DI+PTI
🏭 Chemical hazardous process safety protection, pump unit status monitoring DI+DO
🔧 Metallurgical blast furnace fan monitoring, rolling mill status monitoring PTI (speed measurement)
💧 Monitoring the operation status of large-scale water pumping stations using DI+DO
🏗️ Building fire linkage control, HVAC status monitoring DI+DO
🚢 Ship propulsion system monitoring, navigation equipment status DI+PTI
Constant pairing module (Tricon 3500 ecosystem)
Module Model, Order Number, Type, Function Description
3501/15 35018100-010 power module dual redundant 24VDC power supply ⭐ necessary
3502/11 35028100-010 main processor triple redundant CPU ⭐ System Core
3503E 35038100-010 Analog Input 8-Channel AI (4~20mA) Optional
3504E 35048100-010 Analog output 8-channel AO (4~20mA) optional
3505E 35058100-010 serial communication RS-232/RS-485 optional
3604E 36048100-010 relay output 16 channel RO optional
3625 36258100-010 Solid state output 8-channel SO optional
3721 37218100-010 high-speed counter 4-channel high-speed counter optional
3515 35158100-010 Pulse Accumulation 32 Channel PTI PTI Expansion
3636R/T 36368100-010 relay output 32 channel RO (non TMR) non critical output
8105 81058100-010 Empty slot panel filling unused slot position ⭐ necessary
PTI pulse accumulation detailed parameters (3511 feature function)
Parameter specifications
Counter bit number 31 (signed)
Resolution 16 bits
Accuracy 1000 Hz~20000 Hz, ± 0.01%
Update rate of 25 milliseconds (typical value)
Input characteristics: AC coupling, balanced differential
Impedance>8 K Ω (typical value 20 K Ω)
Common mode range -100 VDC~+100 VDC (peak to peak)
Normal mode range 1.5 V~200 V (peak to peak)
Frequency range 20 Hz~20000 Hz
Duty cycle 10%~90%
Current range 0~20 mA (250 Ω shunt)
Support waveform sine wave/square wave/pulse
Over range protection ± 150 VDC (continuous)
Diagnose each channel independently and compare the counts between channels
