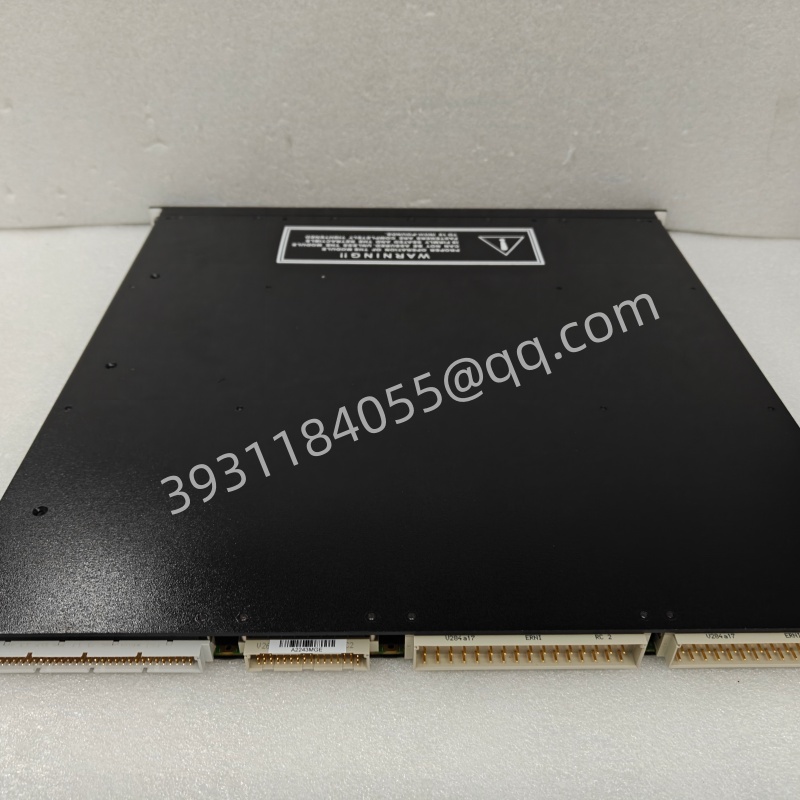

Triconex 3721 is a classic 32 channel, 24V DC, triple module redundant (TMR) digital output module in Schneider Electric’s (formerly Invision) Triconex Safety Instrumented System (SIS).
Unlike the previously mentioned 16 channel modules (such as 3504/3504E), the main feature of 3721 is high density (32 points), aimed at saving cabinet space and reducing single point costs, suitable for large devices that require a large number of discrete output signals. It is mainly used in the Triconex V9 and early V10 system architectures.
The following is a detailed technical analysis about 3721:
1. Core positioning and architecture
Role: High density digital output (DO) module.
Redundancy mechanism (TMR):
Internally, it contains three independent output circuits that work in parallel.
The main processor sends three sets of identical output instructions, and the three channels inside the module drive the load separately.
Equipped with point by point diagnostic function: If a fault (such as a short circuit) is detected in a channel, the channel will automatically isolate, while the other two healthy channels continue to maintain output, ensuring that the system can still operate normally under a single fault (high availability).
Applicable system: Mainly used for Triconex V9 system, some early V10 systems are also compatible, but in the new version of V10/V11 system, it is usually recommended to use updated high-density modules (such as 3664 series or enhanced version with E suffix).
2. Main technical specifications
Number of channels: 32 digital output points.
Advantage: Compared to 16 point modules, it provides double the number of I/O points in the same rack space, significantly reducing the number of cabinets and footprint.
Voltage level: 24 VDC nominal voltage.
Output type: Typically sourcing output (i.e. module output+24V to load, with the other end of the load grounded).
Attention: Please confirm the specific suffix when placing an order, as there are also missing versions, but 3721 is most commonly the source version.
Current capacity:
Single point current: Typically, the maximum continuous current per point is 0.5 A (up to 1.0 A under some conditions, but with strict derating).
Module total current: Due to the dense channels, heat dissipation is the bottleneck. The total current of all 32 channels is usually limited to around 8-10 A (depending on the ambient temperature and installation method). It is strictly prohibited for all channels to operate at full load simultaneously, and reasonable load distribution and derating calculations must be carried out.
Isolation:
Logic side and field side are optically isolated.
Channels are usually divided into several groups (such as 8 or 16 points per group) for common end isolation to balance cost and safety.
Diagnostic function:
Short circuit protection: detects short circuits to ground or power, automatically cuts off the fault point.
Over temperature protection: When the module temperature is too high, it will alarm or turn off the output.
Field power monitoring: Monitor the external power supply voltage.
Note: As an older high-density model, its diagnostic granularity may not be as precise as the latest “E” series (such as 3504E/3664E), for example, it may not support point by point open wire detection or require specific configurations.
3. Comparison between 3721 and 3504/3664
table
Features 3721 (high-density classic model) 3504E/3664E (enhanced/new generation)
Number of channels 32 points 16 points (3504E)/32 points (3664E)
System Architecture V9/Early V10 V9/V10/v11
Diagnostic Ability Basic Diagnosis (Short Circuit/Overheating) Enhanced Diagnosis (Open Circuit, Detailed Fault Code, Point by Point Status)
High heat dissipation requirements (strict derating required) optimized design for better thermal performance
The current situation is gradually ceasing production/the spare parts market is the main mainstream for sale, and it is recommended to use it for new projects
Application scenarios: renovation of old equipment, construction of new projects in limited space scenarios, and scenarios with high reliability requirements
4. Wiring and installation precautions
Terminal block:
Due to the presence of 32 points, high-density specialized terminal blocks (such as 3000 series high-density terminal blocks) are usually required.
When wiring, special attention should be paid to the wire number markings to prevent 32 points from being connected incorrectly.
External power supply (Field Power):
An external 24VDC power supply must be connected.
Due to the high current density, it is recommended to use multiple independent power sources or thick cables for power supply to avoid excessive voltage drop of a single power line causing abnormal operation at remote points.
Usually, there are multiple power input terminals on the terminal block, which must be connected in parallel to share the current.
dissipate heat:
3721 generates a large amount of heat. During installation, ensure good ventilation in the cabinet and avoid overcrowding between modules (although the Triconex rack design takes into account heat dissipation, extra attention should be paid in high-temperature environments).
When configuring, if certain points do not require high-frequency action, software strategies can be used appropriately to distribute the load.
5. Maintenance and troubleshooting
Hot plug: Supports online hot plug. When replacing, the new module will automatically download the configuration.
Risk Warning: As it is a 32 point high-density module, if the backplane contacts poorly or the power supply fluctuates during replacement, the impact range will be larger than that of a 16 point module. It is recommended to proceed during non critical periods or after implementing interlocking bypass measures.
Common faults:
Overheating alarm: Check the ambient temperature, whether the fan is working properly, and whether the load current exceeds the standard.
Multi point short circuit: If there is a large-scale short circuit in the on-site wiring (such as cable damage), it may cause the protective shutdown of the entire module.
Power loss: Check the external 24V power supply circuit fuse.
Spare parts replacement:
Due to the fact that 3721 is an older model, it may be difficult to obtain new spare parts.
Alternative solution: In many cases, 3664 (32 point enhanced) or two 3504E (16 point x2) can be used as alternatives, but this requires modifying the rack configuration, terminal block wiring, and even reconfiguring the program. Do not directly physically replace without verifying compatibility, you must consult Schneider Electric technical support.
6. Summary and Suggestions
Triconex 3721 is a high-density 32 point TMR digital output module widely used in history, which has played an important role in large-scale refining and chemical projects due to its space saving advantages.
Key suggestions:
Lifecycle management: This model has entered the later stage of its lifecycle. If it is a new project, it is strongly recommended to use the updated 3664E or 3504E series.
Spare parts reserve: For old devices that are still in use with 3721, it is recommended to take inventory and reserve an appropriate amount of refurbished parts or second-hand good products to prevent sudden failures and inability to purchase.
Load accounting: During operation and maintenance, it is necessary to regularly calculate the actual current of each channel to ensure that it does not exceed the total current limit and single point limit of the module, in order to prevent module lifespan from being shortened due to overheating.
Upgrade evaluation: If the device undergoes major repairs or modifications, the economy and feasibility of upgrading 3721 to a new model should be evaluated to obtain better diagnostic capabilities and long-term supply guarantee.
