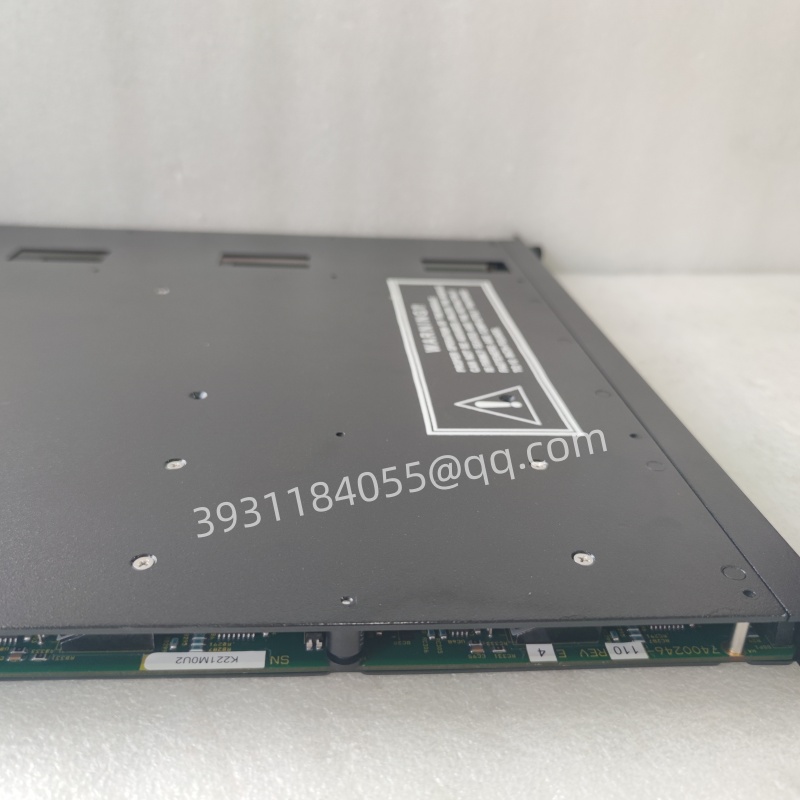

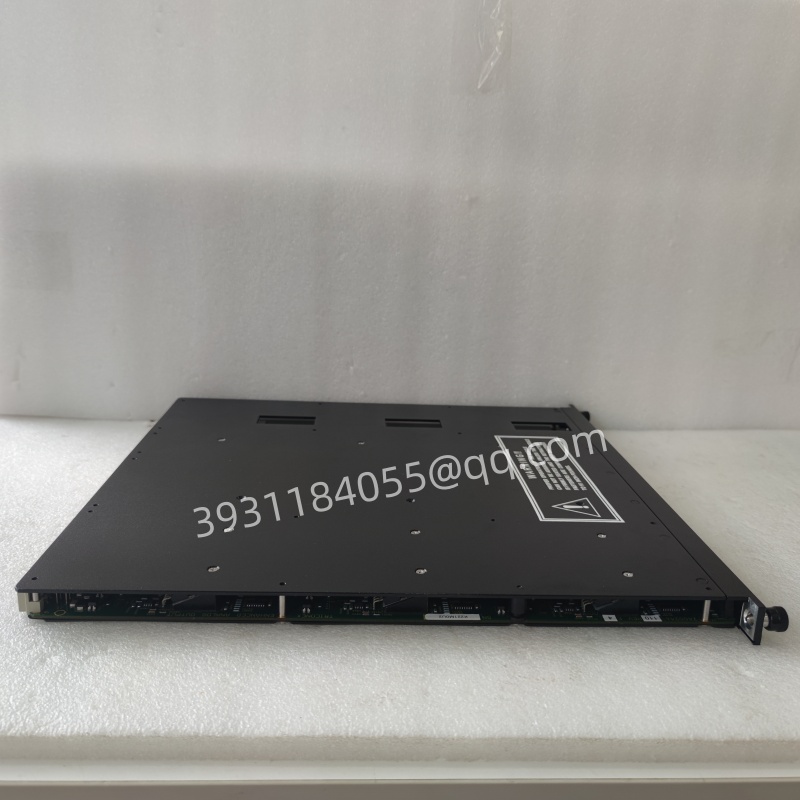

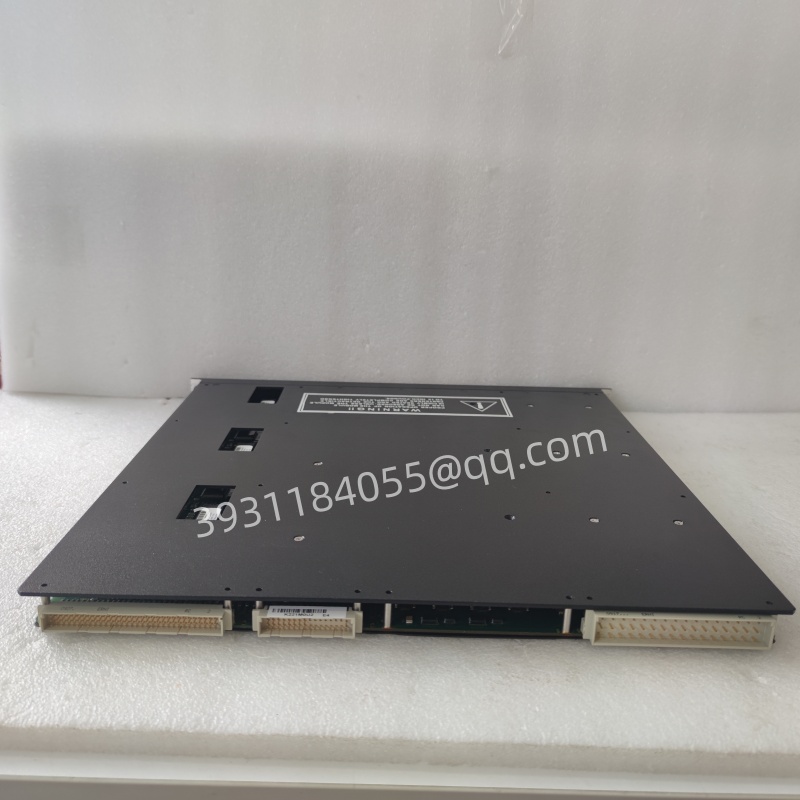

TRICONXE 3805H output module

TRICONEX 3805H Analog Output Module

1、 Basic Information
Brand and Model: TRICONEX 3805H
Product type: Analog output module
Series: Triconex Triple Modular Redundant Main Processor Series
2、 Technical parameters
Output current range: 4-20 mA (with+6% over range capability)
Current loop: DC coupling
Type: TMR (Triple Modular Redundancy), AO (Analog Output)
Resolution: 12 bits
Output accuracy: Within the FSR (0-21.2 mA) range, the accuracy within the 4-20 mA range is<0.25%, and this accuracy remains stable within the temperature range of 0 ° C to 60 ° C
Shipping weight: 3 Kg
3、 Functional Features
High reliability: Adopting a triple module redundancy structure (TMR), it can identify and correct transient and steady-state faults online, improving the safety and availability of the controller.
High availability: Supports hot swapping, allowing for the repair of faulty components while continuing to complete tasks without interrupting process control.
High maintainability: Modular design, supporting online replacement of faulty modules, reducing downtime.
High security: Equipped with comprehensive online diagnostic functions, it can promptly detect and indicate faults during operation, ensuring process safety.
4、 Application Fields
The TRICONEX 3805H analog output module is widely used in key industrial fields such as petroleum, chemical, power, and steel to achieve precise analog output control, ensuring the stability and safety of the production process.
