XYCOM 3615T Industrial Flat Panel Display (HMI)
Product Overview

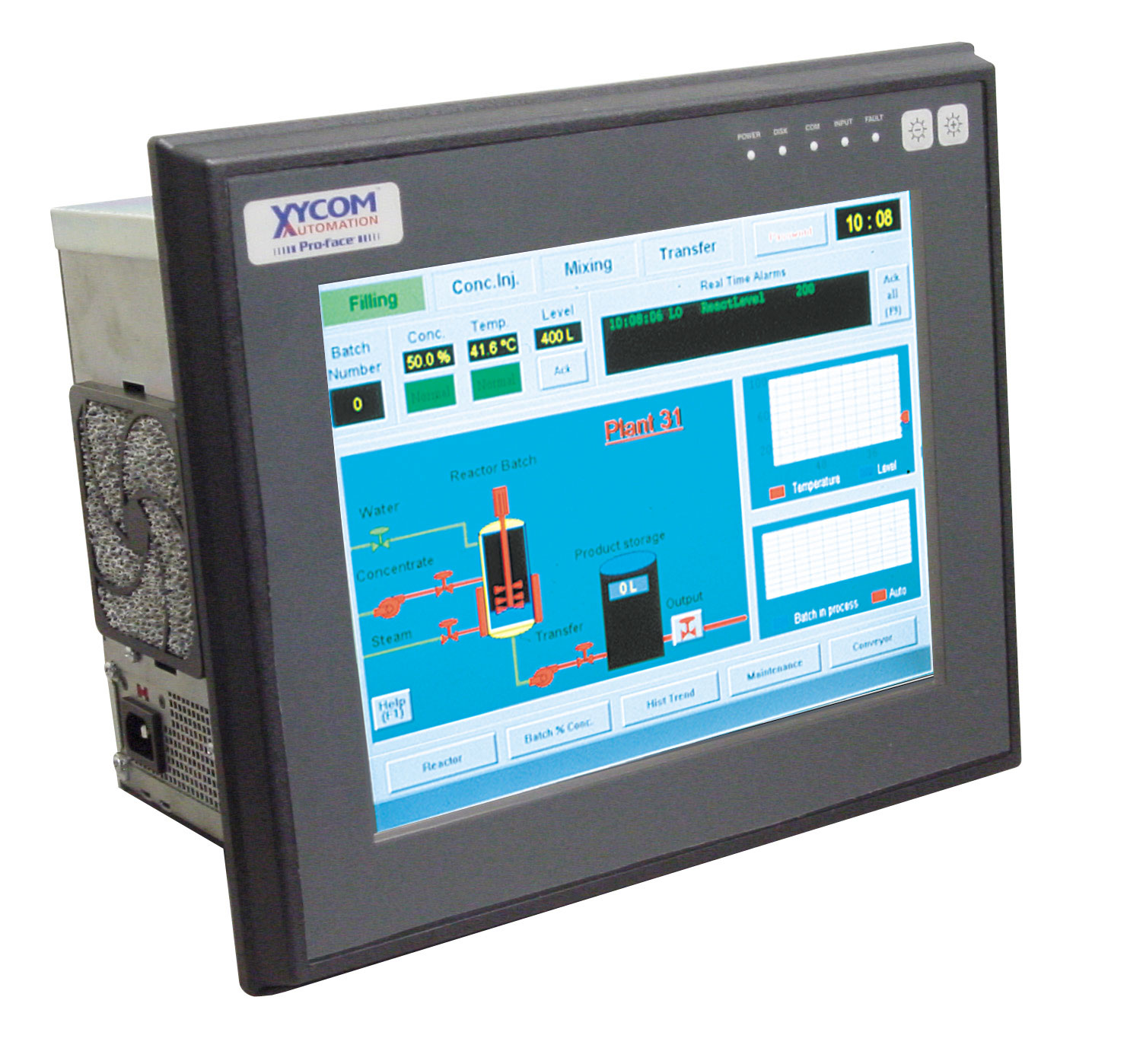

XYCOM 3615T is a 15 inch industrial flat panel display terminal (HMI) produced by XYCOM (now affiliated with Advantech Technology) in the United States. It integrates display, touch operation, industrial computing, and communication, and is widely used in automation sites as an operator monitoring interface and human-machine interaction terminal.

📌 XYCOM 3615T belongs to the same product series as 3612T (12.1-inch), 3515T (15 inch non touch version), 3615KPM (keyboard version), etc., and can be flexibly selected according to on-site needs.

Model Interpretation
Meaning of field codes
XYCOM – Brand (Industrial Display/HMI Professional Manufacturer, currently owned by Advantech)
36-15 inch series (36=15 “, 35=12.1”, 41=17 “, 48=19”)
15-15 inch TFT display screen
T-Touch (touchscreen version), different from KPM (keyboard panel version)
Core technical parameters
Parameter specifications
Brand XYCOM (Advantech)
Product Type: Industrial Flat Panel Display Terminal/HMI Integrated Machine
Screen size 15 inch TFT color LCD
Display type touch screen (Resistive/resistive touch)
Resolution 1024 × 768 (XGA)
Embedded industrial grade processor (32-bit RISC)
2MB~8MB memory (expandable)
Storage supports hard drives/optical drives/floppy drives (compatible with traditional industrial software)
Working voltage 220V AC (wide voltage input 90~250V)
Processing speed 46 μ s (instruction processing)
Output frequency 20Hz
communication interface ✅ RS-232/RS-485 (serial)
✅ Ethernet Ethernet
✅ USB
✅ Parallel port
✅ VGA output (can be connected to an external monitor)
Expansion slot PCI/ISA expansion slot (can add communication cards/functional modules)
Protection level IP54/IP65 (front panel, cabinet installation)
Installation method: Panel installation/DIN rail/wall mounted (75 × 75mm VESA)
Working temperature: 0 ° C~+50 ° C (industrial grade wide temperature range)
Reference quotation ¥ 1121 (2013 quotation, inventory/disassembled parts)
Production Status ⚠️ Stopped production, the market is dominated by inventory/disassembled parts
System architecture and functionality
┌──────────────────────────────────────────────────────────┐
│ XYCOM 3615T Industrial HMI Terminal │
│ │
│ ┌─────────────────────────────────────────────────┐ │
││ 15 “TFT touch screen (1024 × 768) ││
││· Resistive touch/glove operation ││
││· Industrial grade high brightness display, suitable for long-term monitoring ││
│ └───────────────────────┬─────────────────────────┘ │
│ │ │
│ ┌───────────────────────▼─────────────────────────┐ │
││ Embedded processor+memory+storage ││
││· Run monitoring software/control programs/data processing ││
││· PCI/ISA expansion slot (communication card/functional module) ││
│ └───────┬──────────┬──────────┬──────────┬─────────┘ │
│ │ │ │ │ │
│ RS-232/485 Ethernet USB parallel port VGA output │
│ │ │ │ │ │
│ ▼ ▼ ▼ ▼ │
│ ┌──────────────────────────────────────────────────┐ │
││ On site equipment ││
││ PLC/DCS/frequency converter/instrument/sensor/actuator ││
│ └──────────────────────────────────────────────────┘ │
└──────────────────────────────────────────────────────────┘
core functionality
Function Description
🖥️ Display monitoring 15 “TFT high brightness industrial screen, real-time display of DCS/PLC data, trend chart, alarm information
👆 Touch operated resistive touch screen, supporting glove operation, suitable for harsh on-site environments
🔧 Function keys/mouse support physical function keys+integrated mouse operation in addition to touch
🔌 VGA extension VGA interface can be connected to external displays for synchronous/extended display
📡 Rich communication with RS-232/485+Ethernet+USB+parallel port, compatible with multiple protocols
💾 Storage expansion supports hard drives/optical drives/floppy drives, which can run traditional industrial software
🔩 PCI/ISA extension can add communication cards (Profibus, Modbus, etc.) or functional modules
🌡️ Wide temperature working range of 0~50 ° C, suitable for harsh environments in industrial sites
🛡️ IP54/IP65 protection front panel dustproof and waterproof, installed inside the cabinet
Comparison of XYCOM 3600 Series
Model Screen Touch Features Reference Price
3515T 15″ TFT ✅ Touch Basic Type ¥ 1121
⭐ 3615T 15″ TFT ✅ Touch standard type (this product) ¥ 1121

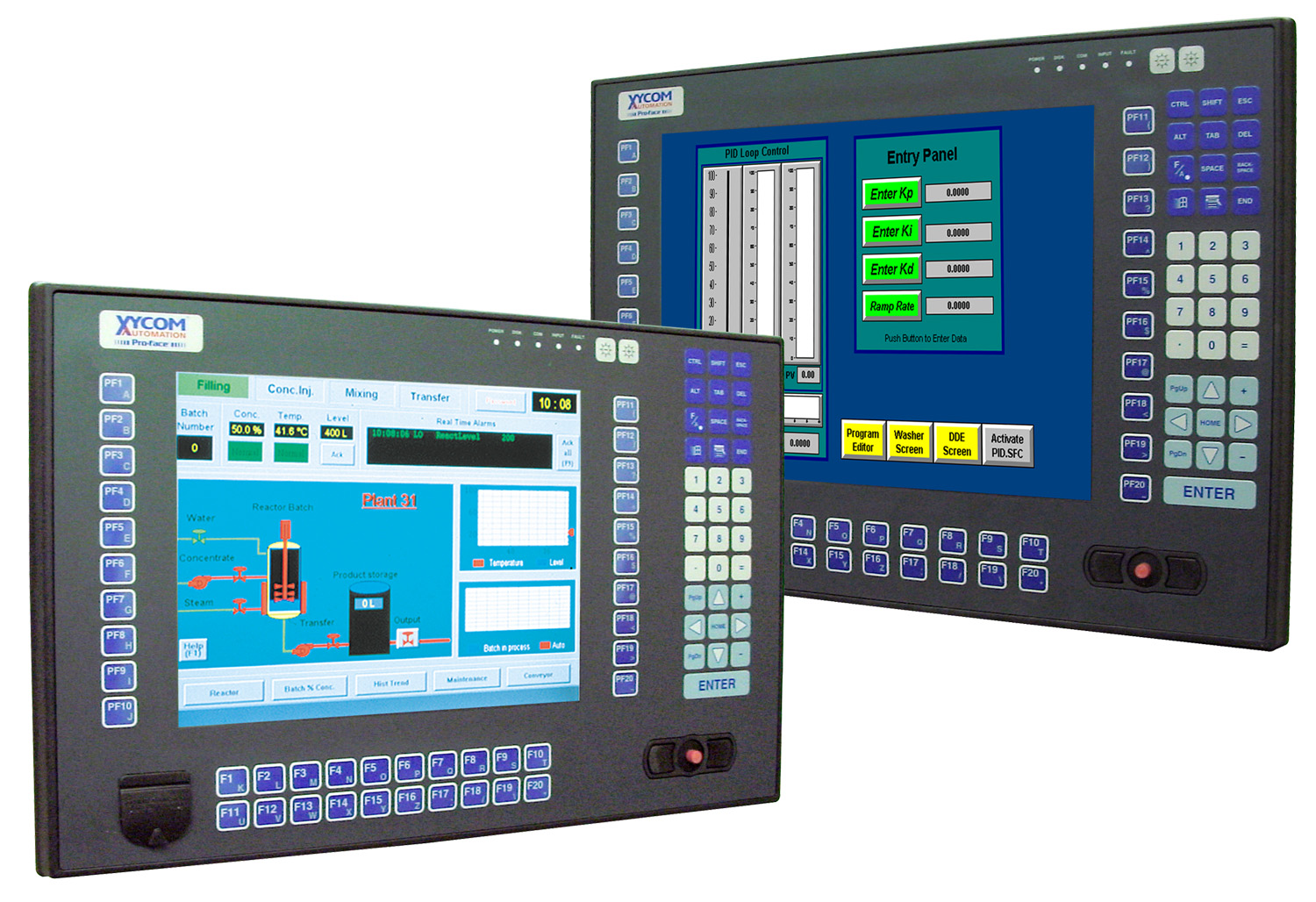

3615KPM 15″ TFT ❌ Keyboard operation panel version ¥ 1200
3612T 12.1″ TFT ✅ Touch Small Compact ¥ 980
3612KPM 12.1″ TFT ❌ Keyboard Small Size Keyboard Edition ¥ 1050
4153B/C 17″ TFT ✅ Touch screen type ¥ 2500
4810E 19″ TFT ✅ Touch screen size ¥ 3800
5015T 15″ TFT ✅ Touch 24VDC Low Voltage Edition ¥ 1500
9457 — ✅ Touch small touch panel ¥ 128
9485 10.4” TFT ✅ Touch small integrated ¥ 1800
Typical application scenarios
Industry Applications
⚡ Power turbine/generator monitoring, plant power switching operation interface
🛢️ Petrochemical reactor/distillation tower monitoring, ESD emergency shutdown operation panel
🏭 Chemical DCS operation station, process parameter monitoring and adjustment
🔧 Metallurgical blast furnace/converter operation interface, cooling water system monitoring
💧 SCADA monitoring terminal for water pump station/water plant
🏗️ Building BA system operation panel, fire monitoring interface
🤖 Manufacturing production line monitoring and equipment status display
Frequently paired products (XYCOM ecosystem)
Product Type Description
XVME-101 VMEbus CPU board paired with 3615T mainframe processor
XVME-202 VMEbus Communication Board Remote I/O Communication
XVME-240 VMEbus I/O board digital/analog I/O expansion
XVME-505/1 VMEbus multifunctional board communication+I/O integration
XVME-674 VMEbus CPU control board high-end processing
8100-0272A motherboard system core board
9400KP touch panel small touch input
9465KPM keyboard panel operator input
