ICS TRIPLEX T8111C Processor Interface Module

ICS TRIPLEX T8111C Processor Interface Module
Product Overview

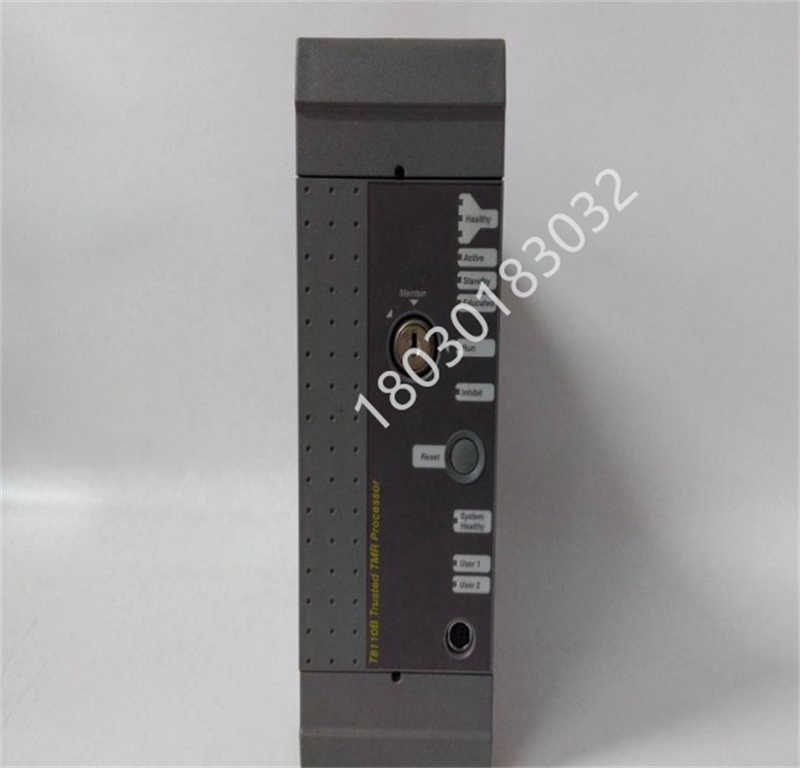

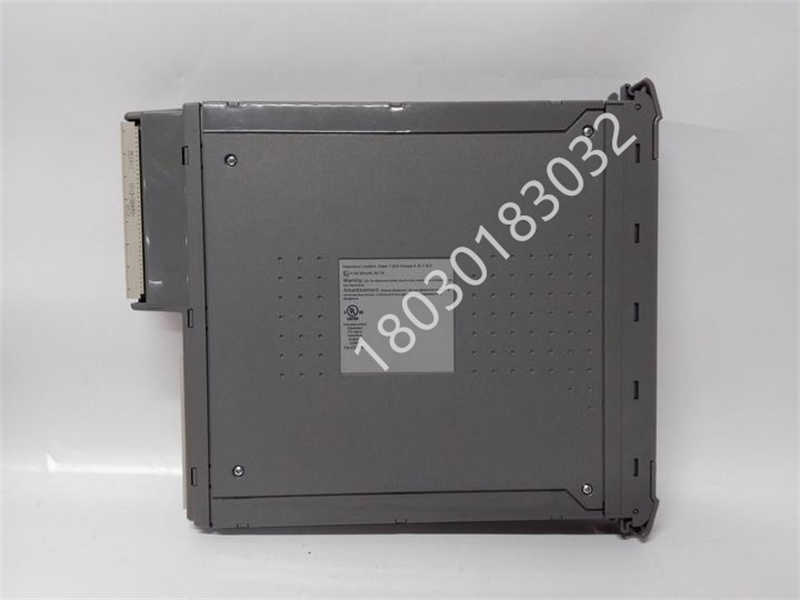

T8111C is a Trusted TMR (Triple Modular Redundancy) processor interface module launched by the ICS TRIPLEX brand under Rockwell Automation in the United States. It belongs to the Trusted System core control component and is widely used in high reliability industrial automation scenarios such as Safety Instrumented Systems (SIS) and DCS process control.

📌 T8111C is essentially an extended interface version of the T811B processor, which retains the complete TMR processor functionality while adding rich communication and interface capabilities. It is the core hub between the controller, I/O module, and upper system.

Model Interpretation
Meaning of field codes
T-Trusted series (high security level)
81- Processor/Controller Class
11- Extended Interface Processor (Different from T810B Basic Type)
C – Version/Revision Level
Core technical parameters
Parameter specifications
Brand ICS TRIPLEX (Rockwell Automation)
Belonging to Trusted System/TMR Security Control System
Triple Modular Redundancy (TMR) architecture, 3-2-0 fault-tolerant operation
CPU 64 bit processor, three independent processors executing synchronously+voting comparison
Fault tolerant hardware implementation (HIFT), response time ≤ 1ms
Safety level IEC 61508 SIL 3/EN 62061/ISO 13849-1 Cat.4/PL e
SOE event recording with 1ms time accuracy and timestamp fault history
Working voltage 24VDC (some configurations support 120VAC)
Working temperature -40 ° C~+85 ° C
Storage temperature -40 ° C~+85 ° C
Humidity 5%~95% RH (no condensation)
Size approximately 200 × 102 × 52 mm
Weight approximately 1.5~2.0 kg
Programming language IEC 61131-3 (ladder diagrams, functional blocks, structured text, etc.)
Communication and interface capabilities
Interface type quantity/specification description
Ethernet 2 × 100M Ethernet connection engineer station, upper SCADA/DCS
RS422/485 4 (2-wire/4-wire configurable) field device communication, Modbus RTU, etc
RS232 2 front panel diagnostics+local configuration
IRIG-B 1 (B002/B122) time synchronization signal to ensure SOE accuracy
Front panel RS232 diagnostic port system monitoring, configuration, programming
LED indicator light with multiple status indications for running/fault/standby status is clear at a glance
hot-swapping ✅ Support online replacement, no need to shut down and reload the program
System architecture and roles
┌──────────────────────────────────────────────────────────────┐
│ Upper System/Engineer Station │
│ (SCADA / DCS / HMI) │
└──────────────────────────┬───────────────────────────────────┘
│ Ethernet/RS422/485
┌────────────▼────────────┐
│ T8111C processor module │← Triple redundant TMR core
│ (Communication interface+logic control) │ · 64 bit CPU
└────┬───────┬───────┬───┘ · 1ms SOE
│││· SIL 3 certification
┌─────────▼─┐ ┌───▼────┐ ┌▼──────────┐
T8403 DI ││ T8480 AO ││ T8451 DO │← I/O module
│ 40 channel DI ││ 40 channel AO ││ 40 channel DO │ (up to 128)
└─────┬─────┘ └───┬────┘ └─────┬─────┘
│ │ │
┌─────▼─────┐ ┌───▼────┐ ┌─────▼─────┐
│ On site sensors │ │ actuators │ │ solenoid valves/motors │
│ Switches/Instruments │ Control Valves │ Relays, etc. │
└───────────┘ └────────┘ └───────────┘

core functionality
Function Description
🔄 TMR voting for synchronous operation of three processors, real-time comparison of results, automatic blocking of single faults
⚡ HIFT fault-tolerant hardware level fault tolerance, fault detection<1ms, system uninterrupted
📊 SOE records 1ms precision event sequence with timestamp for easy accident analysis
🔌 Hot swappable module online replacement, continuous system operation, zero downtime
🛡️ Self diagnostic hardware+software periodic self check (CPU/memory/clock/communication bus)
🌐 Multi protocol communication Ethernet, Modbus TCP/IP, RS422/485, Profibus, etc
⏰ Time synchronization IRIG-B input ensures consistent time across the entire system
Typical application scenarios
Industry Applications
⚡ Emergency shutdown of power turbine unit ESD, generator protection, and switching of plant power
🛢️ Petrochemical reactor safety interlock, ESD emergency shutdown, flare system control
🏭 Chemical hazardous process safety protection, toxic gas interlocking, tank area safety
🔧 Metallurgical blast furnace/converter safety protection, cooling water system monitoring
🏗️ Building fire linkage control and security system integration
Constant pairing module (Trusted System ecosystem)
Module model, type, number of channels
T810B TMR basic processor (without expansion interface) –
T8100 TMR controller rack with 10 slots
T8311 TMR Expansion Interface Module –
T8403 TMR digital input (DI) 40 channels
T8431 TMR Analog Input (AI) 40 Channels
T8480 TMR Analog Output (AO) 40 Channels
T8451 TMR digital output (DO) 40 channels
T8461 TMR digital output (DO) 40 channels
T8151B/C communication interface module with multiple protocols
T8153C communication interface adapter Ethernet x 2+RS422 x 4+RS232 x 2
T8240 power rack 3 × 750W power supply
T8231 power module 750W
