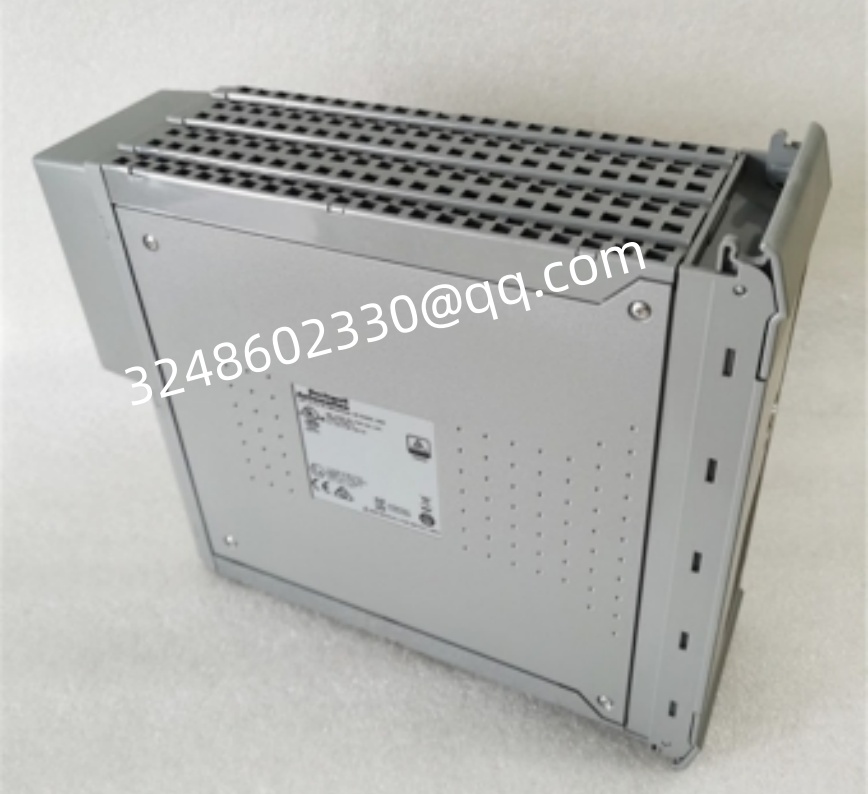

T8471C output module

T8471C digital output module
Product Overview
T8471C is a Trusted TMR 120VDC digital output module produced by ICS TRIPLEX (now Schneider Electric/Emerson) in the United States. It is a core I/O component of the Trusted 8000 series Safety Critical Control Systems (SIS) and is widely used in high-risk industrial scenarios such as petrochemicals, power, and metallurgy.

📌 T8471 is a 120VDC output version, T8472 is a 120VAC output version, and T8473 is a 120VAC isolated output version. The suffix C usually indicates a specific revision or configuration.

Model Interpretation
Meaning of field codes
T-Trusted Series (Triple Modular Redundant Security System)
84- Digital output module class
71-120VDC digital output (72=120VAC, 73=120VAC isolated)
C – Version/Revision Level
Core technical parameters
Parameter specifications
Brand ICS TRIPLEX (Schneider Electric/Emerson)
Belonging to the Trusted 8000 series TMR security control system
Module Type Digital Output (DO)
Output voltage 120VDC
32 channels (TMR triple redundancy)
Output type: Transistor Output
Fault tolerant architecture TMR (Triple Modular Redundancy), 2-out-of-3 voting mechanism
Safety level SIL 3 (IEC 61508)/Cat. 4 (EN 954-1)/PL e (ISO 13849-1)
Response time ≤ 1ms (typical)
Working voltage 24VDC (module power supply)
Working temperature -20 ° C~+70 ° C
Storage temperature -40 ° C~+85 ° C
Humidity 5%~95% RH (non condensing)
Protection level IP20 (installed inside the cabinet)
Installation method: DIN rail/chassis slot (SmartSlot)
hot-swapping ✅ Support online replacement (RIOP)
self-diagnosis ✅ Hardware level self diagnosis+SOE event recording (1ms accuracy)
Programming software IEC 61131 TOOLSET (Trusted Toolset)
System architecture and working principle
┌──────────────────────────────────────────────────────────┐
│ Trusted 8000 TMR Security Control System │
│ │
│——————— TMR bus ┌———————– │
│ │ T8110B/ │◄══════════════►│ T8471C │ │
││ T8111C │ (Triple Redundancy) │ 120VDC Digital Output ││
││ Security Processor ││· 32 Channel DO ││
│└—————- ┘│· TMR Voting Output ││
│ │ └───────┬──────────┘ │
││ Given/Feedback │ 120VDC Output │
│ ▼ ▼ │
│ ┌─────────────┐ ┌──────────────────┐ │
││ Upper system ││ On site actuators ││
││ (DCS/SIS) ││· Electromagnetic valve ││
│└——————- ┘│· Relay ││
││· Contactor coil ││
│ └──────────────────┘ │
└──────────────────────────────────────────────────────────┘
TMR Triple Redundancy Working Principle
Stage description
Three parallel channels with three independent output channels simultaneously receive the same control instructions
Real time voting 2-out-of-3 voting mechanism, automatically blocking any channel failure
Fault isolation module level fault detection+isolation, the fault does not propagate to the system output
When switching to a single point of failure without disturbance, the system continues to operate without interruption in output
SOE records 1ms precision event sequence with timestamp
core advantage
Advantages Explanation
🔒 SIL 3 safety level meets the highest functional safety requirements and is suitable for critical circuits such as ESD emergency shutdown
⚡ TMR triple redundant hardware level fault tolerance, automatic shielding of single point failures, and non-stop system operation
🔌 hot-swapping ✅ Replace modules online without stopping the machine
📊 1ms SOE event sequence recording accuracy of 1ms, convenient for accident analysis
🛡️ Fault self diagnosis hardware+software regular self check, quickly locate faulty modules
🌡️ Wide temperature operation -20 ° C~+70 ° C, suitable for harsh industrial environments
🔄 120VDC output is suitable for on-site equipment such as high-power solenoid valves and contactors
Typical application scenarios
Industry Applications
⚡ Emergency shutdown of power turbine ESD, generator protection, and switching of plant power
🛢️ Petrochemical reactor safety interlock, ESD emergency shutdown, flare system control
🏭 Chemical hazardous process safety protection, toxic gas interlocking
🔧 Metallurgical blast furnace/converter safety protection, cooling water system monitoring
💧 Safety control of large-scale water pumping stations
Constant pairing module (Trusted 8000 ecosystem)
Module Model Type Channel Number Description

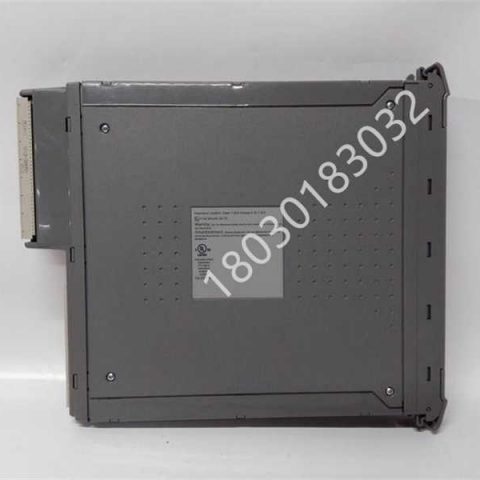

T811B/T8111C TMR Security Processor – ⭐ System Core
T8403C TMR digital input (DI) 40 channel 24VDC
T8431C TMR Analog Input (AI) 40 Channels ⭐ Frequent pairing
T8480C TMR Analog Output (AO) 40 Channels ⭐ Frequent pairing
T8451C TMR digital output (DO) 40 channel 24VDC
T8461C TMR digital output (DO) 40 channel 24/48VDC
⭐ T8471C TMR digital output (DO) 32 channel 120VDC (this product)
T8472C TMR digital output (DO) 32 channel 120VAC
T8473C TMR Digital Output (DO) 32 Channel 120VAC Isolation
T8151B Communication Interface Module – LONWorks/RS422
T8100C Controller Case 10 Slot Host Box
T8300 Expansion Chassis – Remote I/O Expansion
